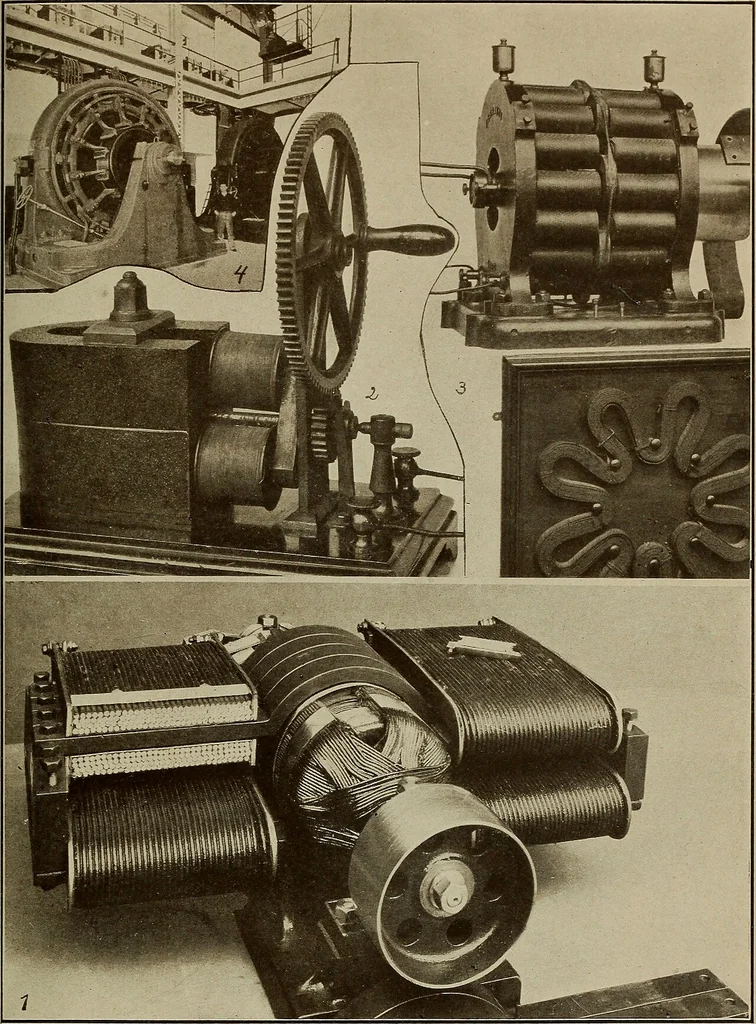

face each other, the lines of magnetic force passingbetween these poles are concentrated into a narrowcompass. With the ordinary bar magnet, as everyoneis aware, these lines of force circle out in everj^ directionfrom the poles in an almost infinite number of loops, allconverging at the poles, and… … THE EVOLUTION OF THE DYNAMO. Fig. I.—A small example of the original commercial form of the drum armature ma-chine, patented in 1873 by Dr. Werner Siemens and F. Von Hefner Alteneck. The armatureis a development of the Siemens shuttle form of 1856, and gives a nearly continuous current.Fig. 2.—Arr…
