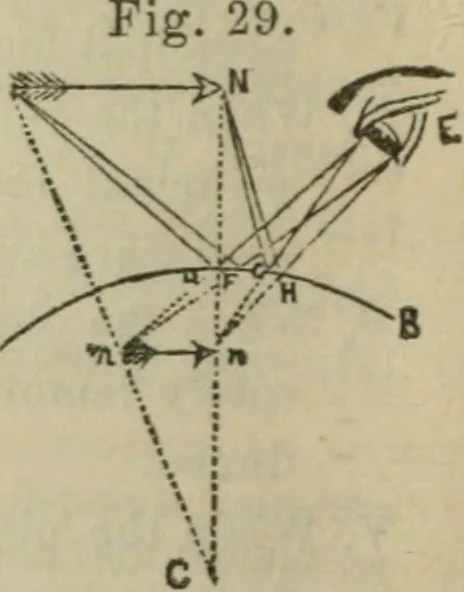

owing facts are noticeablewith reference to the image formed by aconvex mirror : I. The image occupies the same place, however much th« position of the eye may be varied.II. The image will approach the mirror as the objectapproaches it, and will recede towards the principalvirtual focus as the… … CONSTRUCTION OF IMAGES. 103 IV. When the object is in the principal axis of the mirror, theimage is also in the principal axis; but when the object ison one side of the principal axis, the image is on the sameside. 258. To construct an image of a body by means of a convexor concave mirror use the…
