Architectural details for every type of building : a practical drafting room guide for contractors, builders, lumber dealers, millmen, draftsmen and architects. (1921)

William A. Radford · William A. Radford · leaf 149

An illustration from Architectural details for every type of building : a practical drafting room guide for contractors, builders, lumber dealers, millmen, draftsmen and architects., 1921, leaf 149

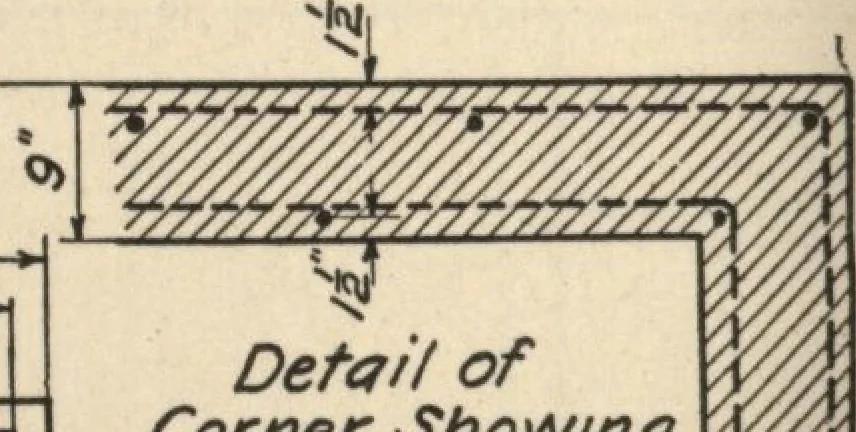

Detail of Corner •Showing arrangement or reinforcing bars Vertical rodsspaced 2.2 in. apart fmwm:^^^m^mmm^mA Section A-A Construction Details of a Reinforced Concrete Tank Desigi sd to Hold 6,000 Gallons of Oil, ARCHITECTURAL DETAILS 153
