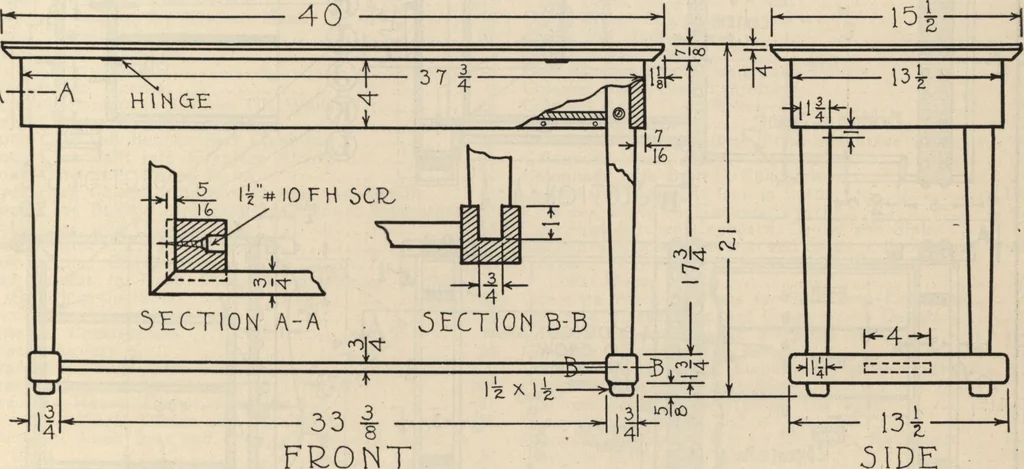

% by 36 inches, S-2-S.The remaining pieces, keys, and short facings aboutdrawers may be got from scrap stock. the A-—A 3 4 SECTION A-A • SECTION B-B **» … FRONT Construction Details of a Strong: and Serviceable Piano Bench. Stock Bill for Piano Bench, Giving Finished SizesCover, 1 piece, % by 15# by 40. Posts, 4 pieces, 1# by IH by 18& (one 1-inch tenon).Frame, 2 pieces, U by 4 by 37Y^. 2 pieces, H by 4 by \3y2.Lower rail, 2 pieces, \% by 134 by…
