Architectural details for every type of building : a practical drafting room guide for contractors, builders, lumber dealers, millmen, draftsmen and architects. (1921)

William A. Radford · William A. Radford · leaf 17

An illustration from Architectural details for every type of building : a practical drafting room guide for contractors, builders, lumber dealers, millmen, draftsmen and architects., 1921, leaf 17

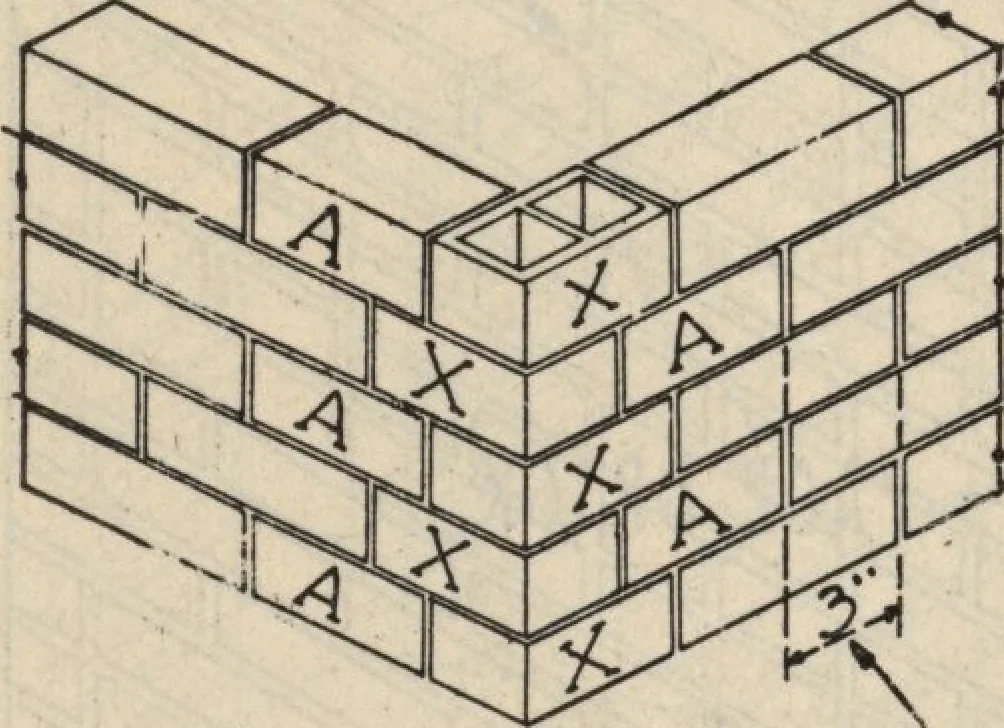

Detail for Bonding Corners and Finish-ing Aronnd Openings of 8-Inch HollowTile Walls with Common Brick. … THI5 DttMCifld 0fj0!/1T5 Throughout May bt Madi6£>y HAVf/ia The Till ma£kcduAv CiST TO 3LC/1<3TH5 uX1,= 8k5^4Co(^lK. Till Corner Bonding Detail for5-Inch Walls of 4 by 5 by 12-InchHollow Tile Laid on the 5-InchBed. When Laid on the 4-1 richFace for 4-Inch Walls, the Cor-ner Tile Would Be of 4…
