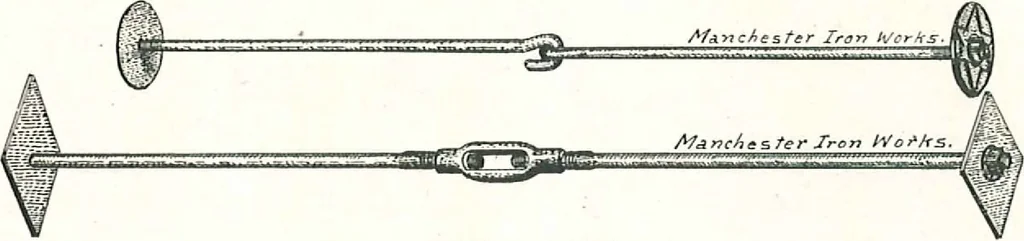

iameter bolt, 12 in. long jq No. 46—Strap Anchor, 1% in. x ^ in. strap, 20 in. long, hooked ends 09 No. 47—Strap Anchor, 1J4 in- x ^ in. strap, 24 in. long, hooked ends 12 No. 48—Wall Plate Anchor a, )A in. bolt, 18 in. long, 3 in. x 3 in. head .15 b, y?. in. bolt, 24 in. long, 3 in. x 4 in. head… … No. 51 No. 52 TIE RODS N0> 51—Plain Tie Rods, 12 ft. long in one length; longer rods hooked in about 12 ft. sections. No. 52—Tie Rods with turnbuckle in center. All our turnbuckle rods are made with upset bolt ends, so that the diameterof the thread is larger than the diameter of the rod,…
