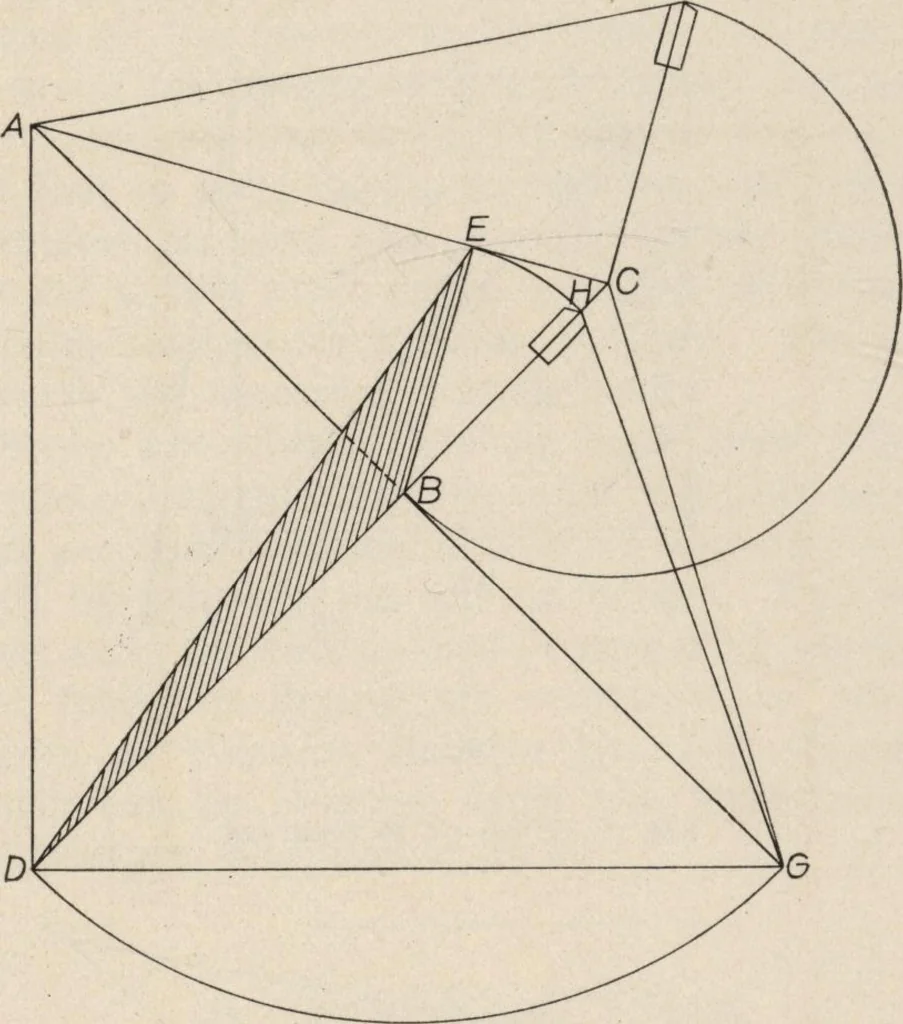

h to c-i. Owing to the different pitch of the three figures,it occasionally causes two letters to occur at thesame place as in Figs. 2 and 3 for example, c and /and / and e in Fig. 2 and a and k in Fig. 3. In working out the proportion in Figs. 2 and 3, itis done a little differently owing to the… … Fi£?. 4—Method of Backing the Hip Method of Finding Bevels in Roof F the tongue h-c will be against the roof and overthe line n-c also that the blade c-i will run diag-onally down the side of the building under the linec-d. From G. L. Smith, Indianapolis, Ind.—In look-ing over some of the earlier…
