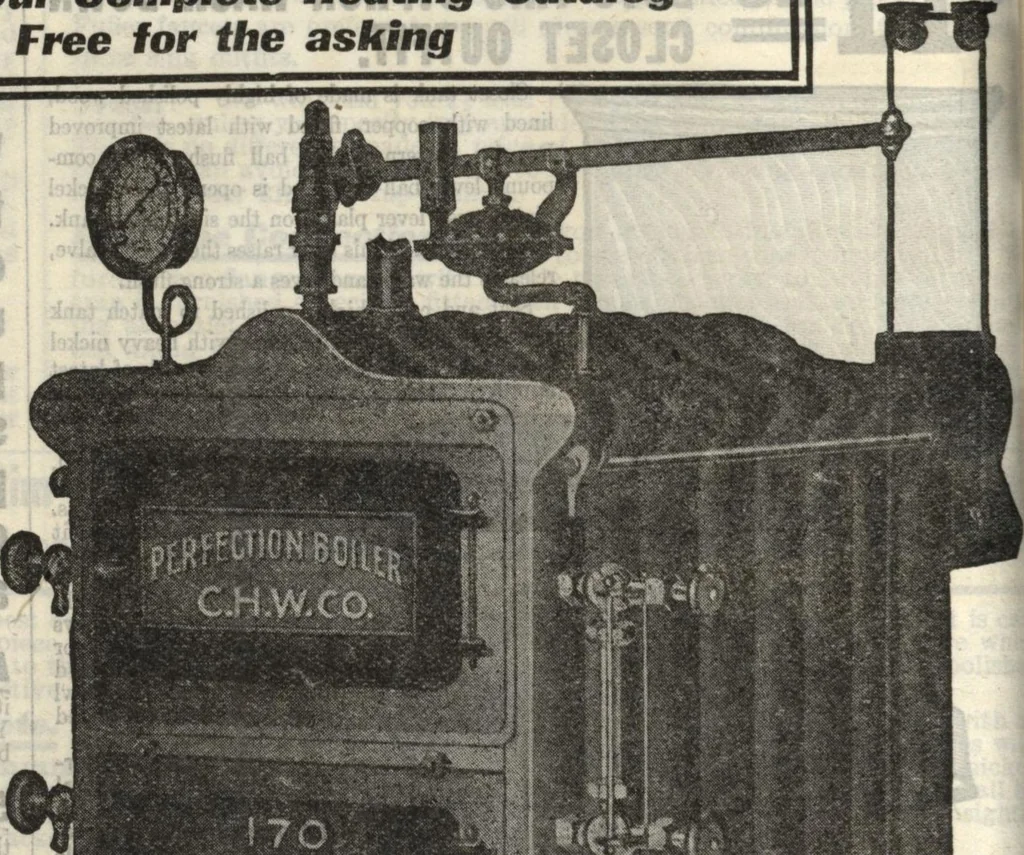

very hard matter to keep the-flue surfaces properly cleaned at all points so that the fullamount of heat will be taken up from the fuel. The simplicityof the flue arrangement and also the ease with which theseboilers can be cleaned, are their strongest points. Note thatthe entire fire pot is… … THE ROCKING GRATES Every grate bar in our boilers is mounted on an axis andconnects with a common connecting bar underneath. Thisconnecting bar is attached to a lever located at the side of theboiler as shown in these illustrations and by operating thislever every grate bar in the entire boiler can…
