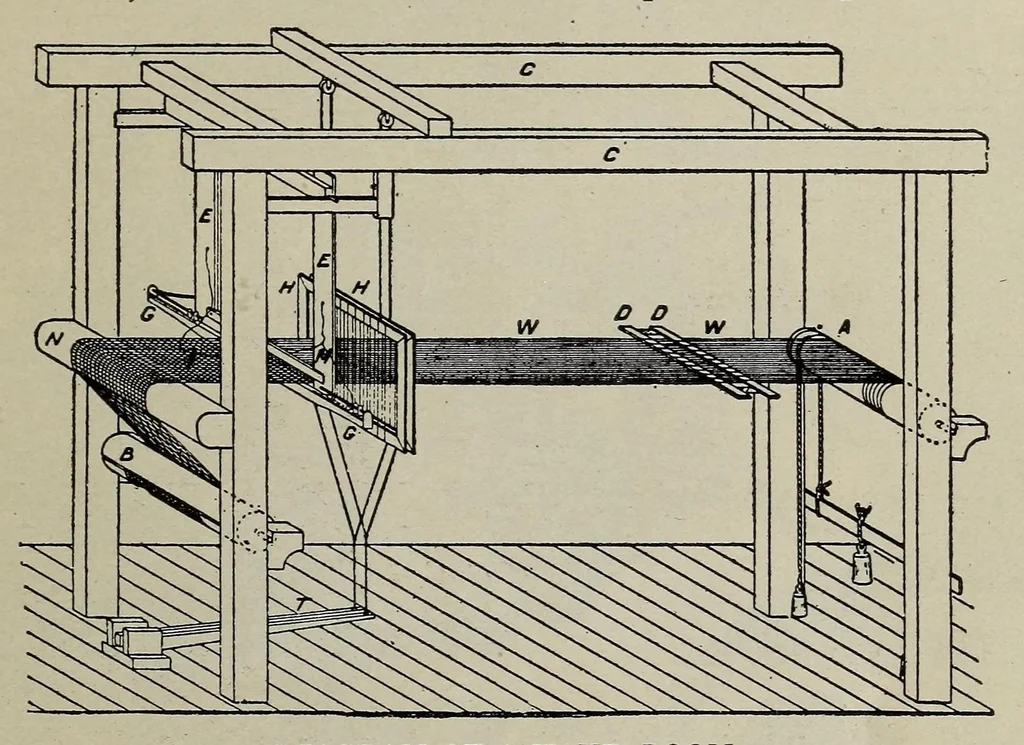

WEAVING 23 has been defined as a mechanism which affects the following necessary movements : I. The liftiner of the healds to form an opening, Definition ^- i 1 1 ,1 1 of B. Loon or shed, or race for the shuttle to pass through. … DIAGRAM OF A HAND LOOM Warp Beam; ^— Cloth Beam; Z)Z>— Lees Rods; Harness, r— Treddle. 2. The throwing of the weft or filling by means of a shuttle. 3. The beating up of the weft left in the shed by the shuttle to the cloth already formed. This thread may be adjusted by means of the batten, needle,…
