Catalogue of Structural Steel & Iron for Architects, Engineers & Contractors (1910)
Manitoba Bridge & Iron Works · Manitoba Bridge & Iron Works · leaf 108

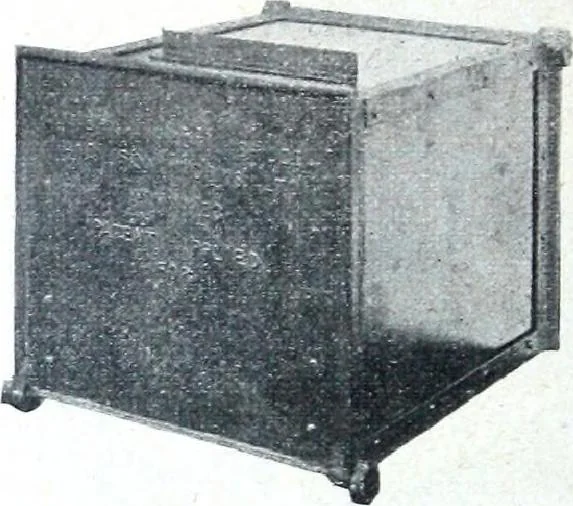

No. 193—Manitoba Chute—open, … Jfo. 194,—Manitoba Chute—closed. SPECIFICATIONS Barrel is made of No. 14 Gauge sheet steel reinforced at cornerswith steel angles, all riveted. Doors at each end are heavy cast iron, swinging on hea\y rod hinges. ■ Hopper is made of cast iron. These Fuel Chutes have Automatic Loclcing Device on…
