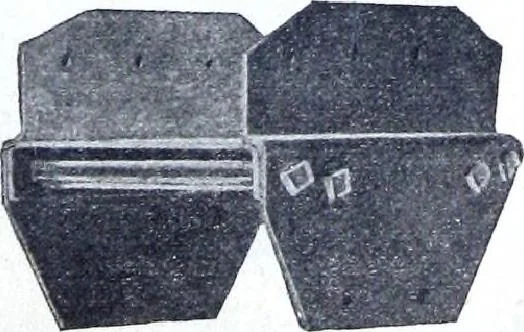

J ■ •<-- No. 331—Duplex Post Cap. The cap is made in three^pieces of mild steel. For post caps up to 12 in..\ inch steel is used, and for heavier construction^-in. or ^ in. plates andbearing brackets are provided. The weight of the girder is carried on theshoulder formed on the post. The heavy… … No* 332—Duplex, Bent-in sideplates, 12x12 post below.10-xlOpost above, carrying lO-girder. When ordering or asking for prices, read carefully Instructions to Buyers on page 216 IS . 182 THE MANITOBA BRIDGE AND IRON WORKS, LIMITED :t , Post Caps and BeiStS — Continued
