Catalogue of Structural Steel & Iron for Architects, Engineers & Contractors (1910)
Manitoba Bridge & Iron Works · Manitoba Bridge & Iron Works · leaf 186

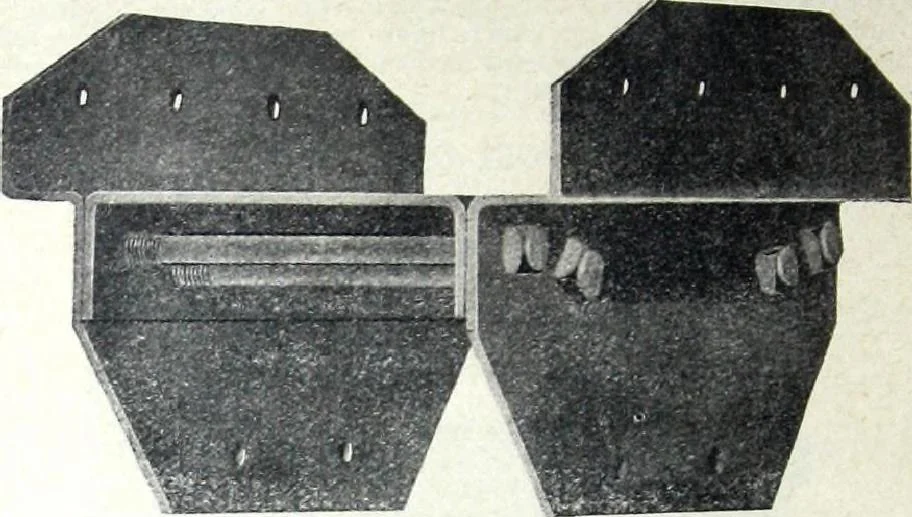

No* 332—Duplex, Bent-in sideplates, 12x12 post below.10-xlOpost above, carrying lO-girder. When ordering or asking for prices, read carefully Instructions to Buyers on page 216 IS . 182 THE MANITOBA BRIDGE AND IRON WORKS, LIMITED :t , Post Caps and BeiStS — Continued … No. 333—Duplex Bent-out side plates, 10x10 post carr^Ing 14-inch- girder, to the post. The outer bolt is directly under the bearing bracket, while theinner bolt is close up against the post. The Duplex Post Caps are fastenedto the posts by lag screws, forming a most rigid construction and…
Metals · Structural Metal Framing · Structural Steel Framing · Metal Fabrication · Metal Stairs · Decorative Metal · Openings · Doors and Frames · Metal Doors · Windows · Metal Windows · Electrical engineering · Lighting · Exterior Lighting · Transportation · Bridges · Jail Equipment
Internet Archive · Building Technology Heritage Library · Public Domain Mark 1.0. Free to use for anything.
