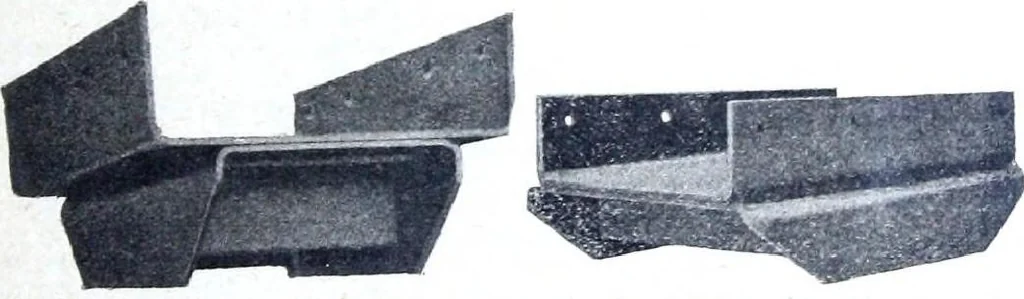

as tomake it adjustable to every possible size of post and girder The tipper partof the cap is built of a steel plate properly bent so as to provide an exactbearing for the girders. The construction of this po^t cap is such that both:>i the channels as well as the angles riveted thereto give a… … No. 340—Ideal Post Cap No. 1 (patented)10x10 post to caiTTT l-i-in. tirder. No. 341—Ideal Post Cap Ko. 1 fpatented)12x12 post to carry 10-in. girder.
