Catalogue of Structural Steel & Iron for Architects, Engineers & Contractors (1910)
Manitoba Bridge & Iron Works · Manitoba Bridge & Iron Works · leaf 192

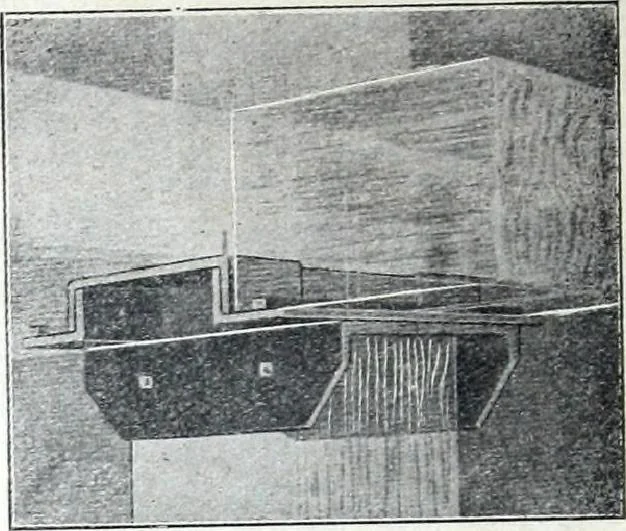

for the full width of the widest girder, without dressing down thesides, because with this cap the width of the girder seats is independentof the size of either post. The result is a tight fit for ALL members andless load per square inch of girder surface resting on the cap, less crushingstrain on… … No. 345—3-way or 4^way Post Cap • p t. SIZES AXD PRICES, ATLAS 2-WAY POST CAPS Size of Post6 in. X 6 in. . Width of Girders List Price .Up to 8 ill S 4.50 Over 8 inch 5.00 o:^ v^in UptolOinch 5.30 lOin. X lOm Uplo I2inch 6.30 Over 12-inch 7.00 12 in. X 12 in Up to 14 inch 7.30 Over 14 inch 8.50…
