Collection of United States patents granted to Thomas A. Edison, 1869-1884 (1869)
Edison, Thomas A. (Thomas Alva), 1847-1931, Peters, N. (Norris), lithographer, Hammer, William Joseph, 1858-1934, former owner. DSI, Edison, Thomas A. (Thomas Alva), 1847-1931, inscriber. DSI, United States. Patent Office · Washington, D.C. : U.S. Patent Office · leaf 23

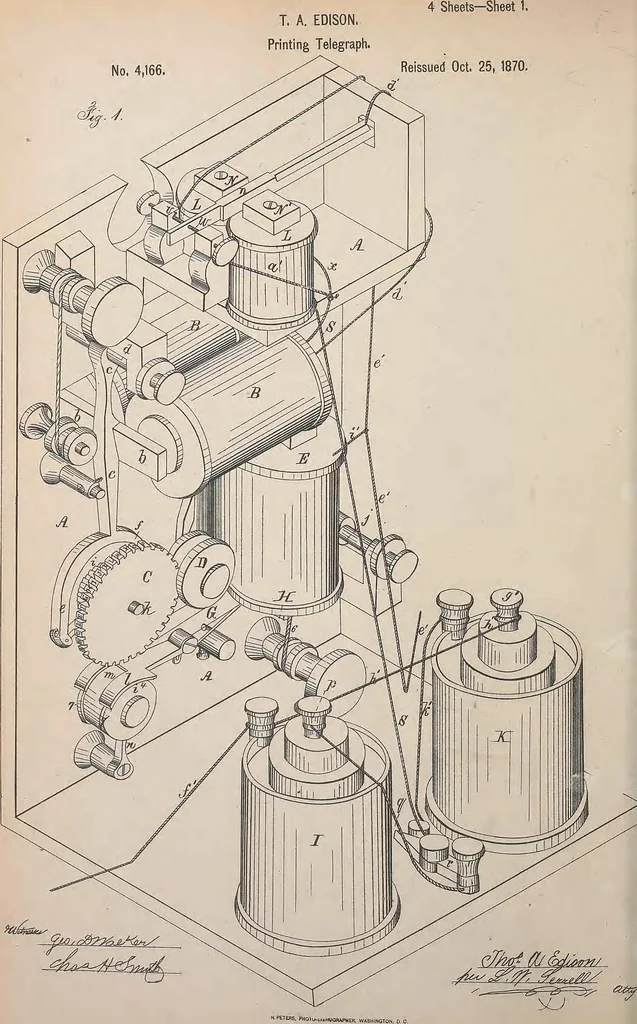

re, escapement,pointer, and dial - plate, with the battery &,connected and operated substantially as andfor the purpose above described. 3. The combination of switch, types, cylin-der p, rollers q q, strips o o, and insulators jf, magnets v v, armature, &c, constructed inthe manner and for… … No. 4,166. T. A. EDISON.Printing Telegraph, 4 Sheets—Sheet 2. Reissued Oct. 25, 1870.
