Collection of United States patents granted to Thomas A. Edison, 1869-1884 (1869)

Edison, Thomas A. (Thomas Alva), 1847-1931, Peters, N. (Norris), lithographer, Hammer, William Joseph, 1858-1934, former owner. DSI, Edison, Thomas A. (Thomas Alva), 1847-1931, inscriber. DSI, United States. Patent Office · Washington, D.C. : U.S. Patent Office · leaf 501

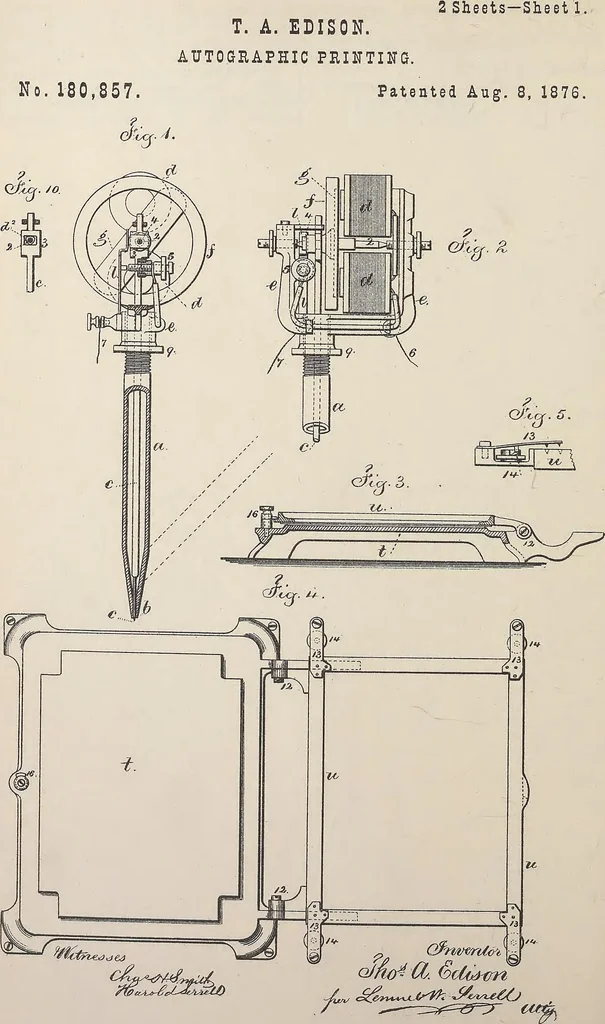

An illustration from Collection of United States patents granted to Thomas A. Edison, 1869-1884, 1869, leaf 501
he electro-magnets c d, in the localcircuit containing the circuit-breaker a, incombination with the circuit-closing lever e,notched armature lever u, spring t, and ar-mature-lever o, substantially as set forth. 3. The mechanical compensator, consist-ing of the spring t and notched lever u,… … N. PETERS, PHOTO-LITHOGRAPHER, WASHINGTON, O 0. 2 Sheets—Sheet 2. T. A. EDISON.AUTOGRAPHIC PRINTING.No. 180,857. Patented Aug. 8, 1876.
