Collection of United States patents granted to Thomas A. Edison, 1869-1884 (1869)

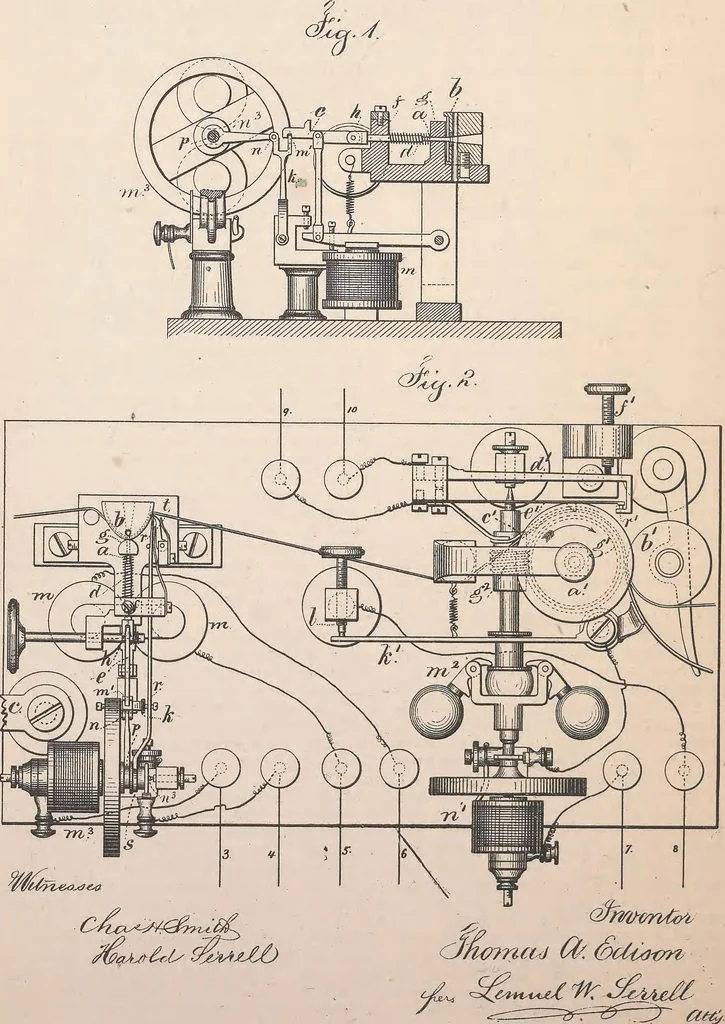

Edison, Thomas A. (Thomas Alva), 1847-1931, Peters, N. (Norris), lithographer, Hammer, William Joseph, 1858-1934, former owner. DSI, Edison, Thomas A. (Thomas Alva), 1847-1931, inscriber. DSI, United States. Patent Office · Washington, D.C. : U.S. Patent Office · leaf 577
ring a b,points c d, and line and earth wire to, all ar-ranged and operated substantially as set forth,and for the purposes specified. 5. The shunts E1 and Ez, Fig. 3, resistanceE, condenser c, in combination with the elec-tro-magnet or other receiving-instrument, forthe purposes set forth. Signed… … N. PETERS, PHOTO-LITHOGRAPHER, WASHINGTON, D United States Patent Office. THOMAS A. EDISON, OF MEELO PAEE, NEW JEESEY.IMPROVEMENT IN AUTOMATIC-TELEGRAPH PERFORATOR AND TRANSMITTER. Specification forming part of Letters Patent No. 200,004, dated March 5,1878; application filed November 11, 1876. To…
Trade catalogs · Patents · Edison, Thomas A. (Thomas Alva), 1847-1931 · Inventions · Telegraph · Electric machinery · Electric apparatus and appliances · Phonograph · Telephone · Motors
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
