THE TRANSLATION OF ARITHMETIC OPERATIONS INTO SWITCHING OPERATIONS IN DIGITAL COMPUTER DESIGN (1952)
Defense Technical Information Center · leaf 22

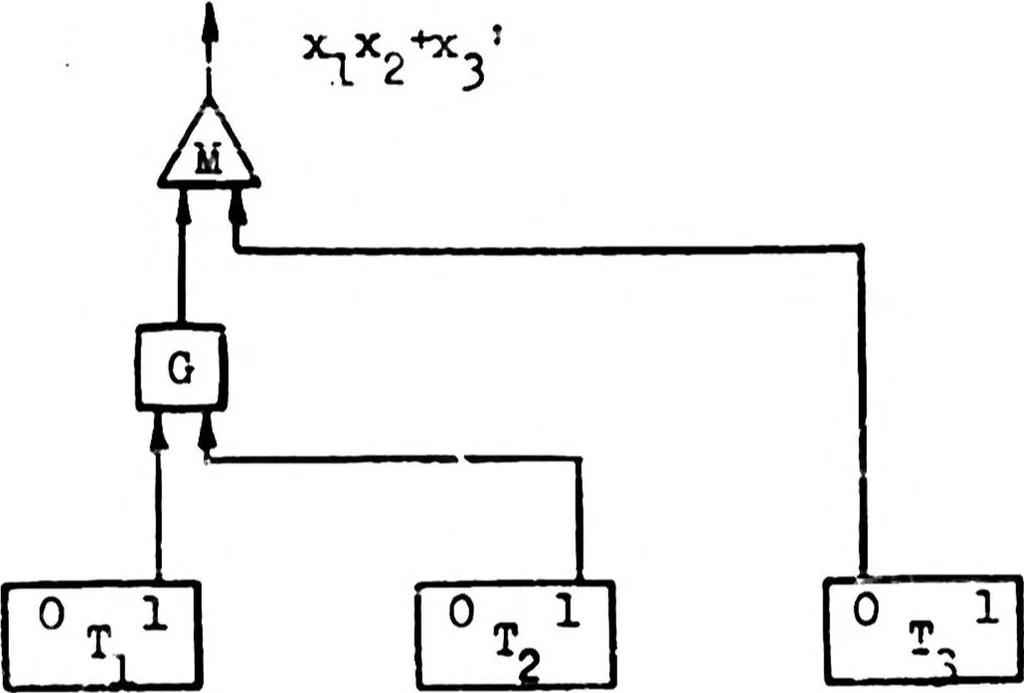

12 II According to equat.i on 2.1 h, however, 1 * x2 *■ Xj - 1 Then the rig? t side expression becomes *1 * which is the left side of the equation 2.23* In Figure 2,h is shown a simple block diagram representing formation of a signal depending on the states of 3 toggles, the form- ation of a… … Figure 2.1i - Formation of a switching function oi three variables A function may be described by means of a truth table, friving its value for all value combinations of the variables upon which it depends* The truth table for the function in Figure 2. U is shown below Xg x^ f(x) State *1 Number o…
