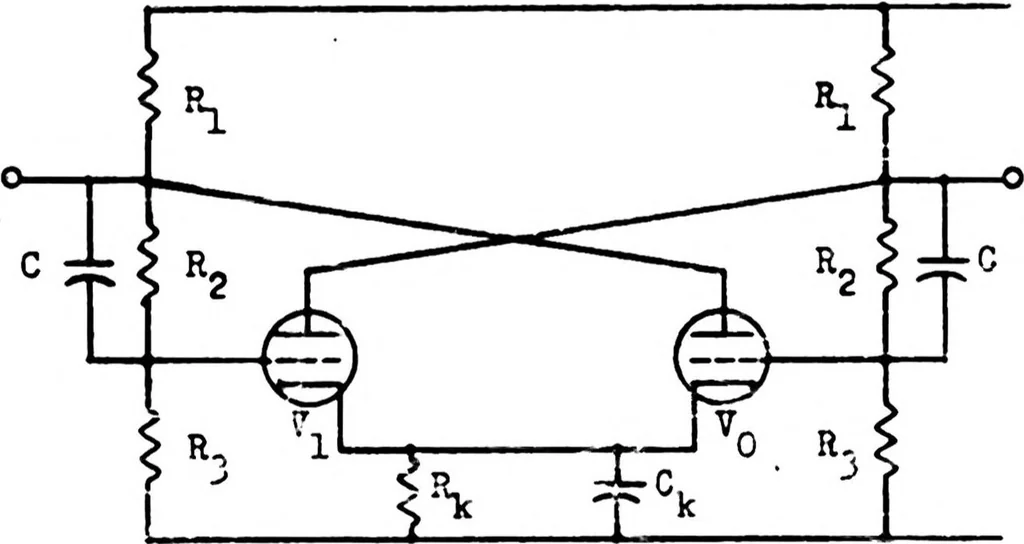

HAPTER IV THE REALIZATION OF SWITCHING FUNCTIONS BY MEANS OF iHCDE NETWORKS The discussion in Chapter II of the characteristics of the basic logical elements, toggles, gates and mixers, did not in any- way bring in the physical nature of these elements. In this chap- ter a set of techniques for… … Figure U.l - Self -biased Eccles-Jordan trigger circuit Hie resistors R^, Rg, and R.^ arc chosen so that only one of the tubes, V_ or Vr, is conducting in the stable state. When V. is conducting assumes the. higher of its two potentials aid the lower of it3 potentials; when is conducting, the…
