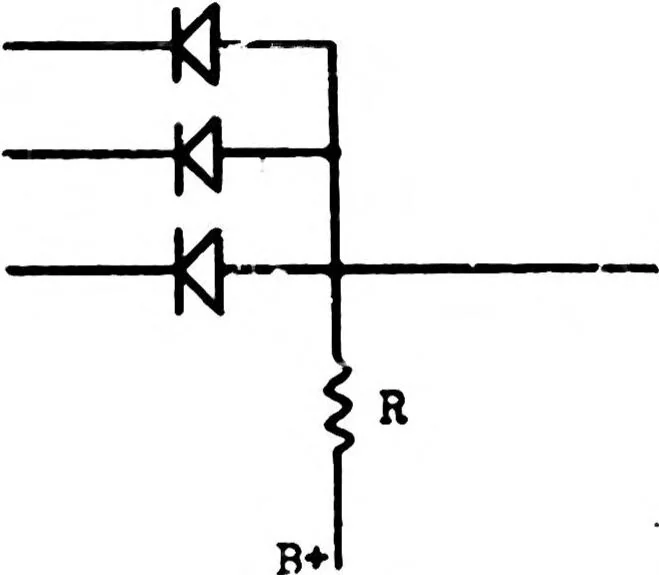

r of the two possible plate poten- tials. The resistance of R is large compared to the forward resistance of t> e diodes. It is easily seen that N will at all times be at a potential approximately equal to the highest of the potentials at A, B, and C, In other words, N will assume its higher… … A diode gate is shown in Figure h.3
