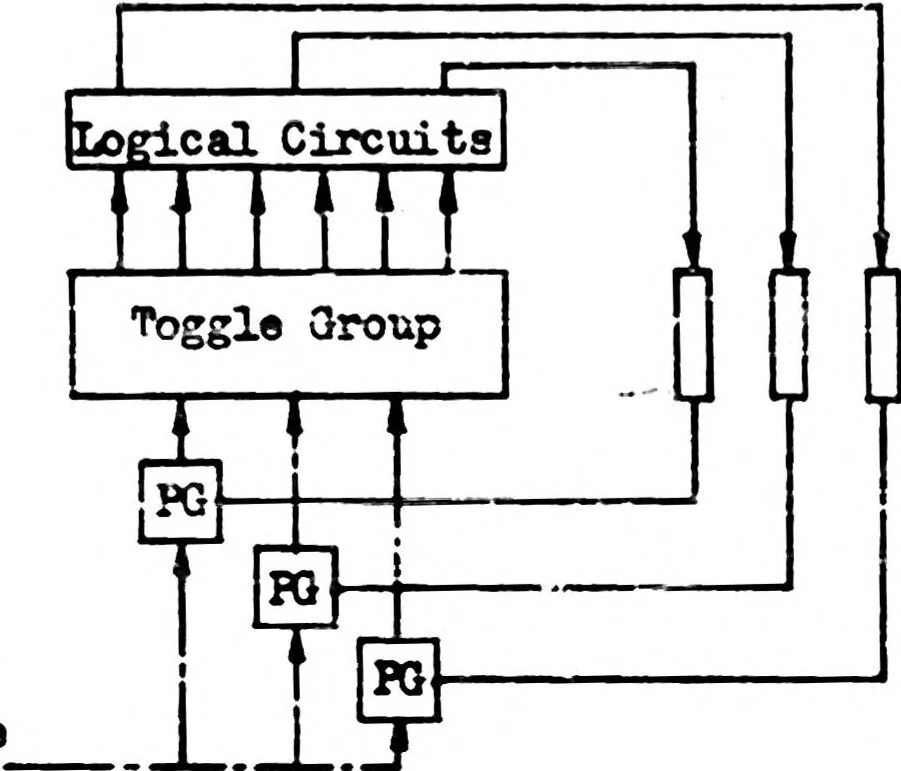

"jl. V For the t.yr*» of operation which Trill be di ijcussea here me filtered output infonration will be used to control the change of state which Trill taka place in the group when a pu i.5e is app-4.'i.'. do This operation is shown schematically in Figure 5*1® … Figure 5.1 - General block diagram for converters and Cv*uiioers For each state the logical filter specifies the next state into which the group is to be transferred by application of a pulse 0 In order that the pulse gates may remain unchanged during the pulse,, a delay larger than the pulse width…
