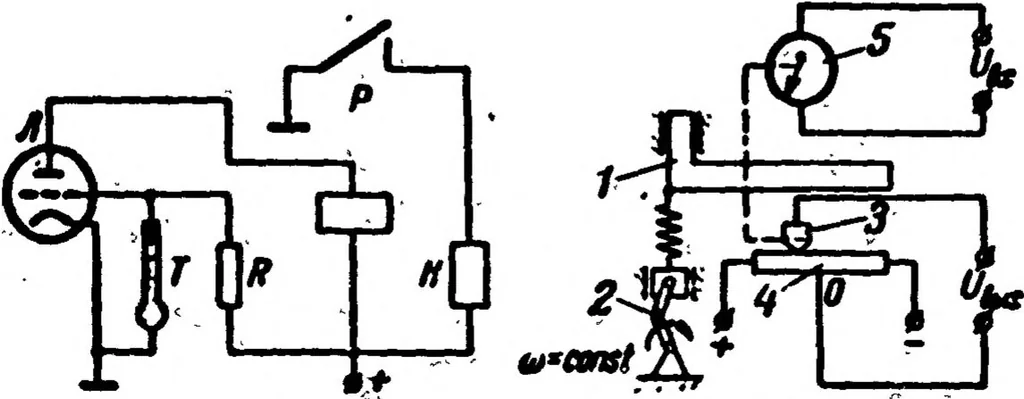

d and locks, the circuit of heating element. When temperature lri the thermostat reaches a certain given value, mercury in thermo- <* regulator reaches the upper electrode, grid of tube locks through mercury with cathode* and Is potential, of sgrid becomes equal to zero. Plate current here is… … Fig. 7. Devices of automatic adjustment, a) relay system of automatic adjustment of temperature in the thermostat; b) pulse element "with incident arc."' In the described system the relay element can have two states — switched on and -14-
