Application of Coding Methods in Development of Symbology for a Computer-Generated Topographic Display for Army Aviators (1982)
Defense Technical Information Center · leaf 30

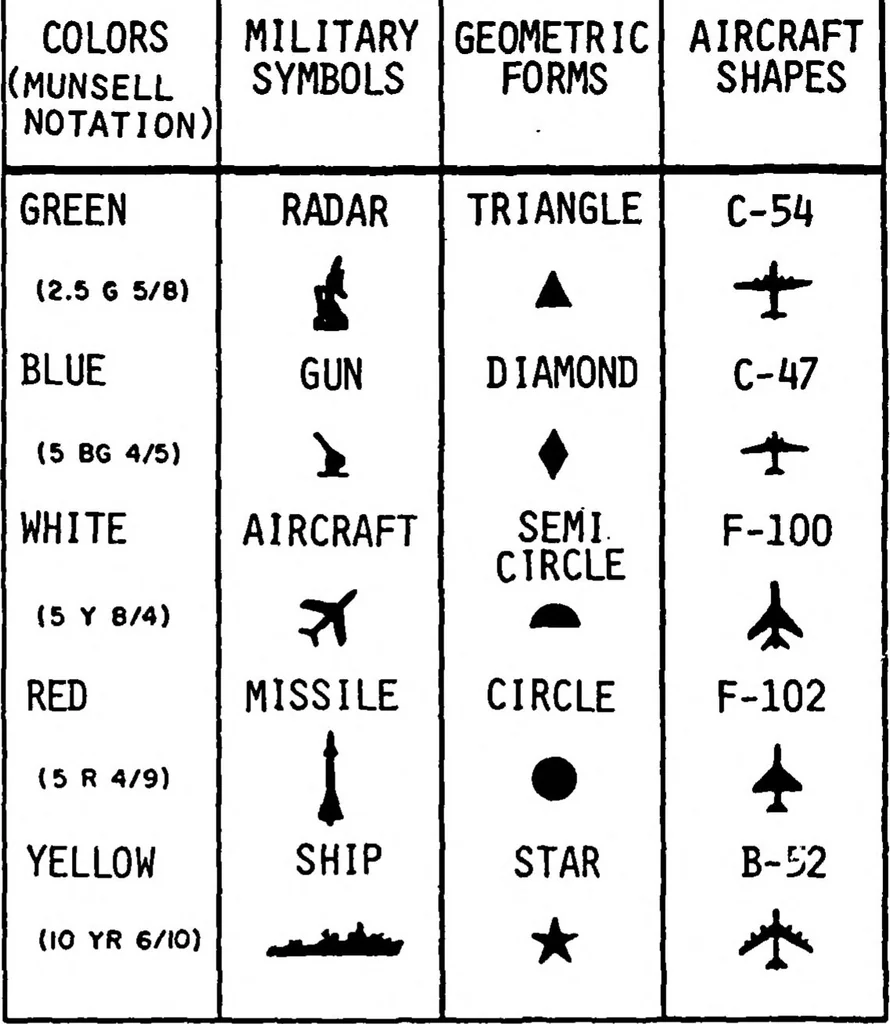

Figure 10. Color and shape symbols used by Smith and Thomas (1964). were pictorial military symbols selected to represent an easily discriminable code, since they varied in size and orientation, as well as in shape. A second set of symbols was based upon standard geometric symbols. The third set of…
McCallum,Marvin C · Anacapa sciences inc santa barbara ca · Computer applications · Symbolic programming · Data displays · Topography · Army aviation · Tactical data systems · Pilots · Army personnel · Literature surveys · Visual perception · Avionics · Mapping · Flight instruments · Human factors engineering · Information systems · Interactive graphics · Man machine systems · Helicopters · Navigation · Symbols
