Analysis of the Capability to Effectively Design Complementary Metal Oxide Semiconductor Integrated Circuits (1984)
Defense Technical Information Center · leaf 27

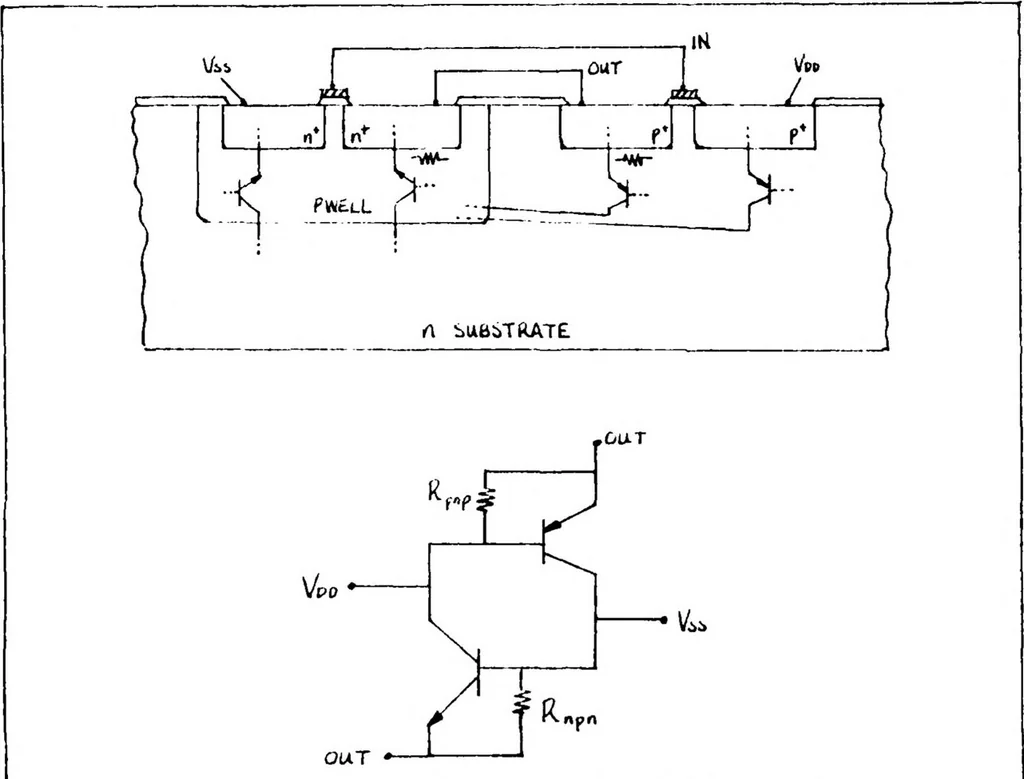

Figure 11-4. CMOS Inverter Cross Section Showing Parasitic Bipolar Transistors n-well and the twin well structures as well. Notice in the figure that the collector of the npn transistor drives the base of the pnp transistor and vice versa. This forms a pnpn junction which is an SCR, silicon…
