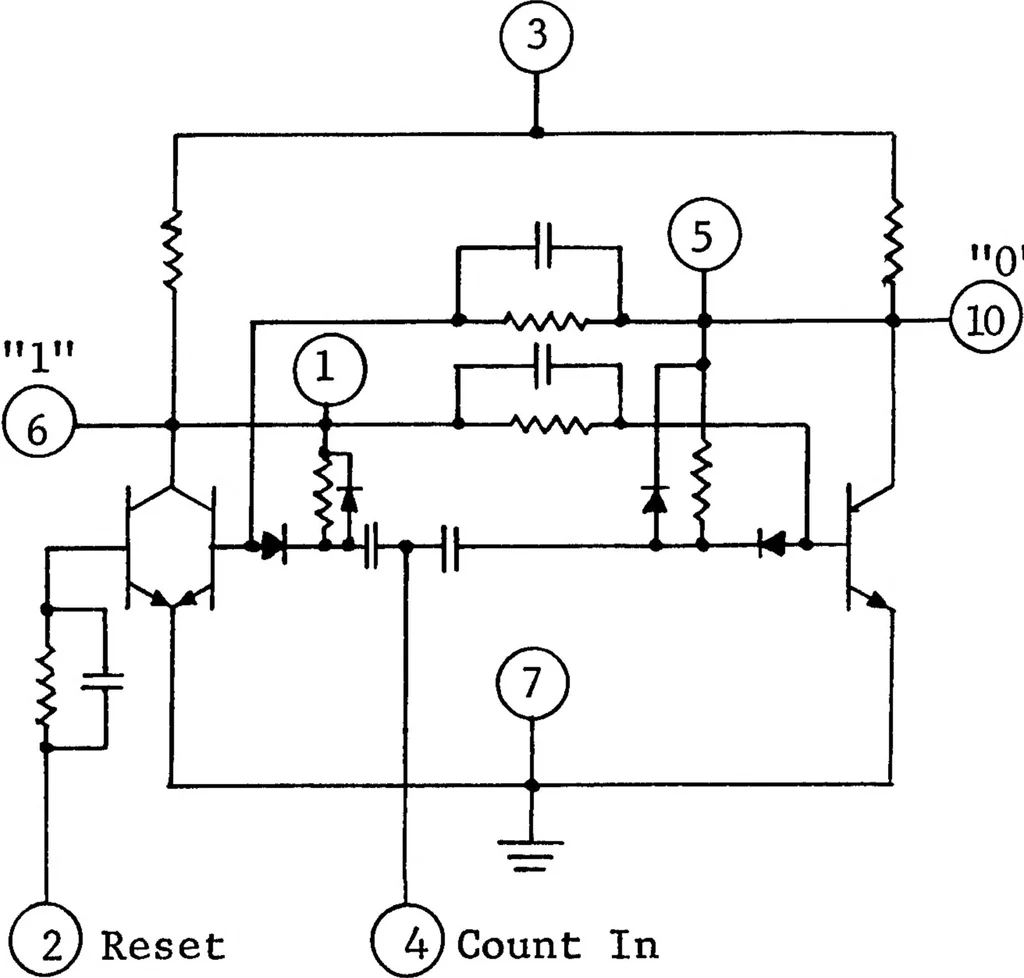

tr ansi tor is biased on, and since the base-to-emitter voltage of the input transistor is about 0.5 V, an inhibitor of this type is positive in action. Figure 36 shows a unique type of counter which requires input circuits to both the first and second stages. This counter counts at the input… … Figube 34. — 8N510 solid oirouit used as a binary counter.
