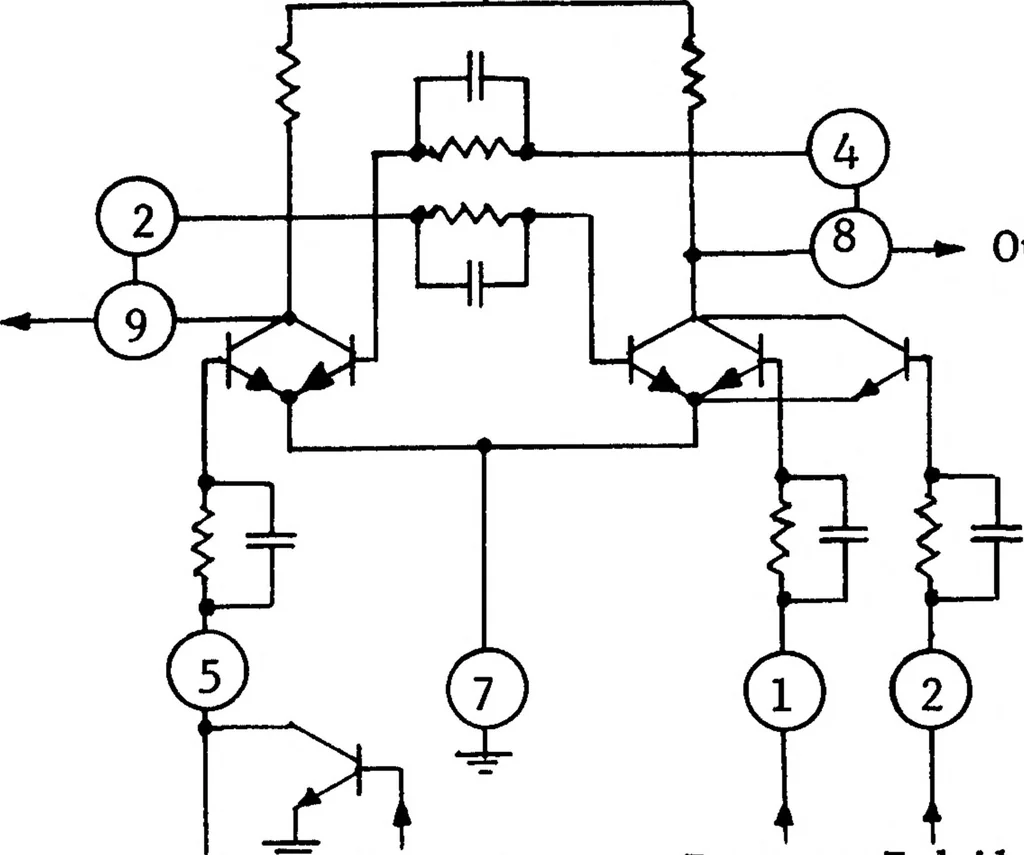

MICROELECTRONICS IN SPACE RESEARCH 98 +V cc … SN514, shown in figure 37, is used to perform this function instead of four transistors. The SN514 circuit can be set to the “T’ or “0” state by applying a positive voltage to terminal 1 or 5, respectively. The external tran¬ sistor Qx can effectively gate or inhibit the set signal. However, the…
