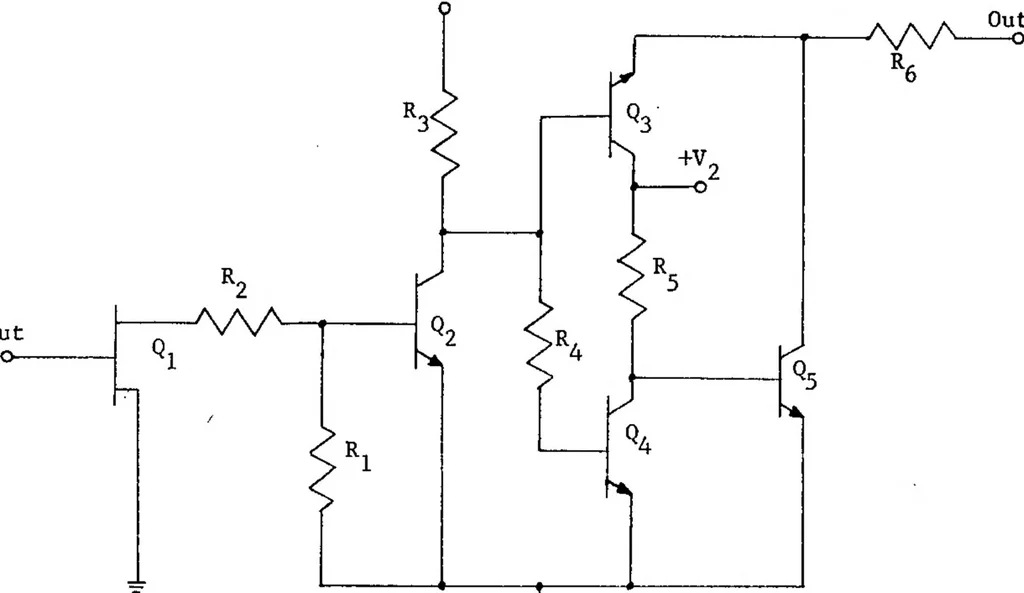

gh impedance digital signal (0 V and 2 V for a logical “0” and “1”) and to have an output sufficient to drive the recording head (3.5 mA and —3.5 mA for the logical “1” and “0”) . The microelectronic circuit is shown in figure 40 and the electrical specifications are given in table IX. A… … Figure 40. — Circuit for integrated record amplifier.
