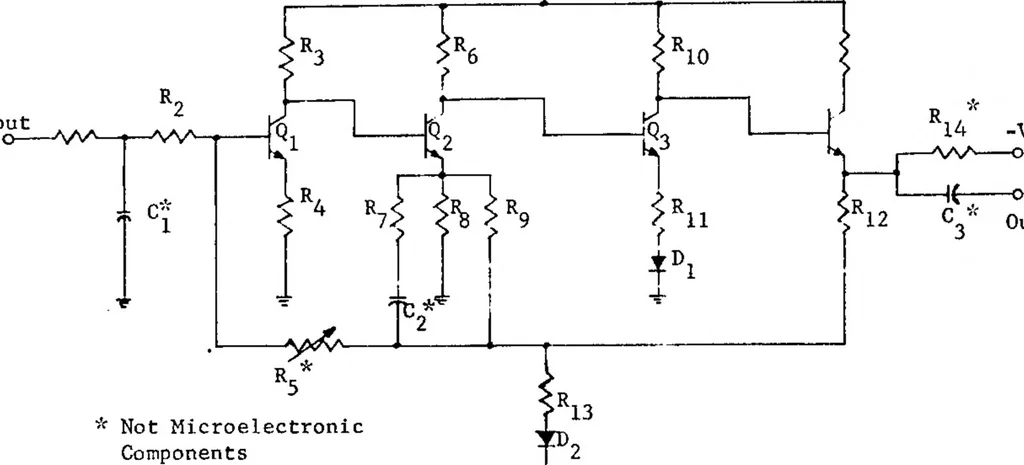

103 APPLICATIONS +V Switched … +V * This Resistor Is Not Microelectronic Figure 42. — Cvrouit for integrated high-level playback amplifier. conventional external resistor The bandpass of the amplifier is 20 cps to 18 kc and is determined by the input RC filter ; the total power consumed is 3.7 mW. The output of the preamplifier…
