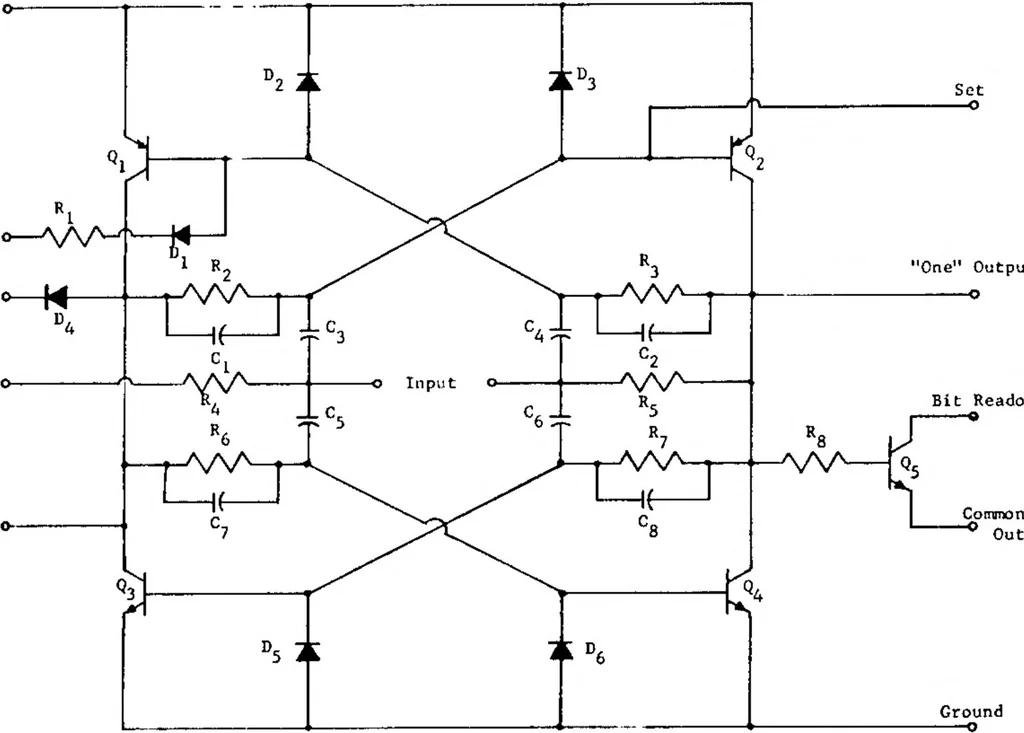

one quasi-floating point counter, a control subsystem and a readout subsystem. Each of the binary counters contains nine flip-flops, the circuit for which is shown in figure 43. The multichip approach allows the use of both p-n-p and n-p-n transistors in this flip-flop. These circuits are put on a… … Figure 43. — Circuit for muUichip integrated flip-flop using complementary transistors.
