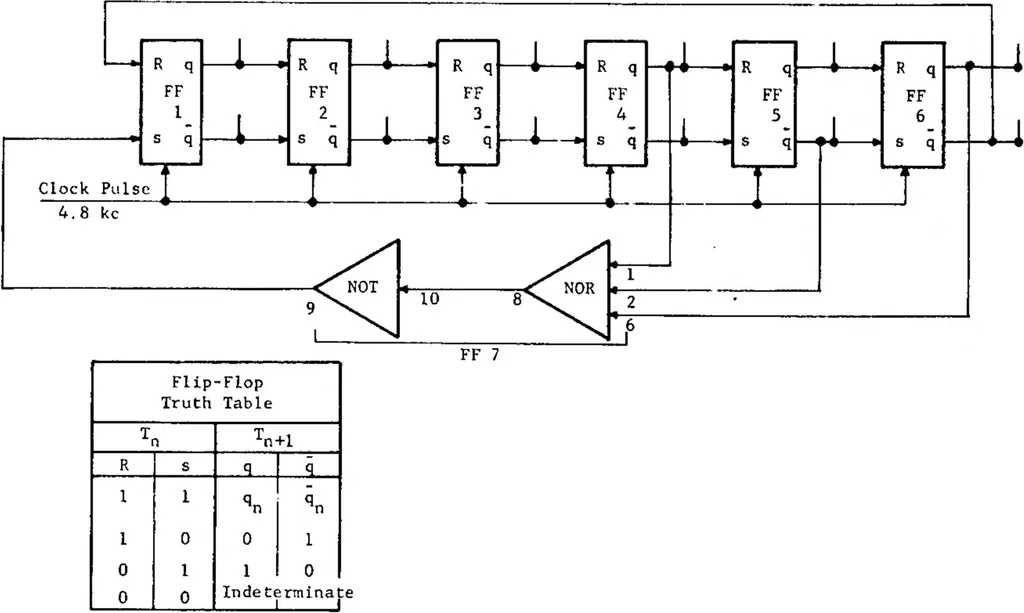

s shown in figure 50. Since a positive voltage is here employed as a logic each half of the gate is a NOR circuit. If either input 1, 2 or 6 is a logic “1”, then one of the three associated transistors will be turned on and output 8 will be a logic “0”. The outputs of each flip-flop are a positive… … Positive Logic Figure 50, — Block diagram of the pulse sequence generator.
