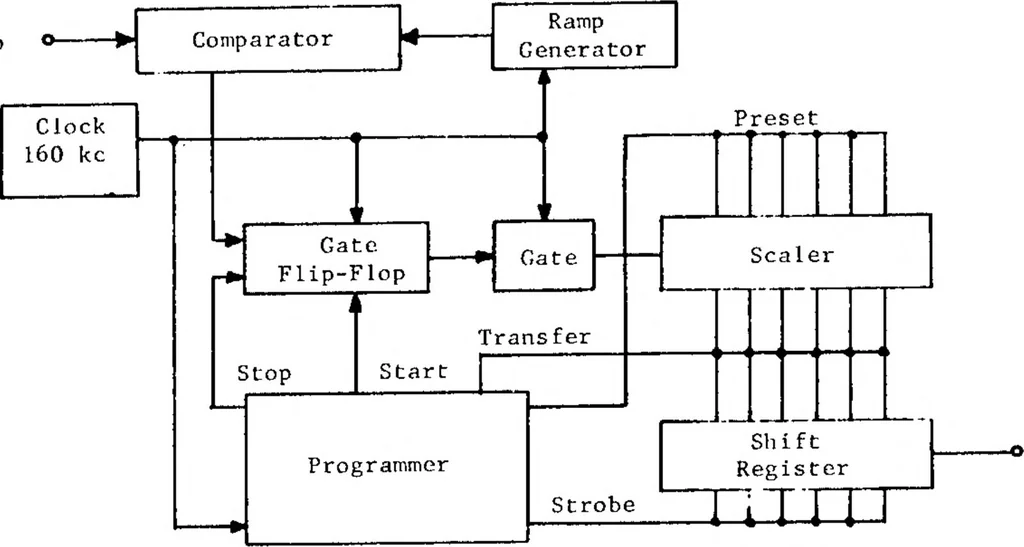

lop opens the gate between the clock and the scaler. The scaler counts the 160 kc clock pulses until the ramp voltage reaches, the video input to the comparator. When the two voltages are equal, the comparator pro¬ duces an output pulse which changes the state of the set-reset gates in the gate… … Figure 55. — A/D converter for use in slow-scan television systems.
