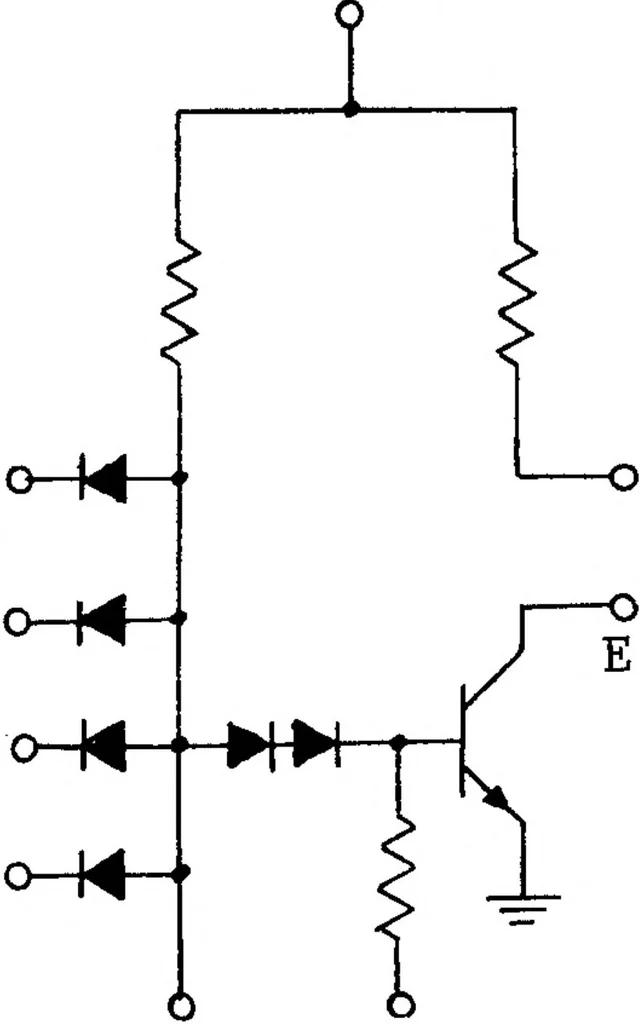

c. A second form of logic which has been applied in silicon integrated devices is diode transistor logic (DTL) . One version of this is shown in figure 2. Other important logic designs are transistor- transistor logic (T^L) shown in figure 3 and emitter coupled transistor logic (ECTL) which is… … Figure 2. — Diode transistor logic gate.
