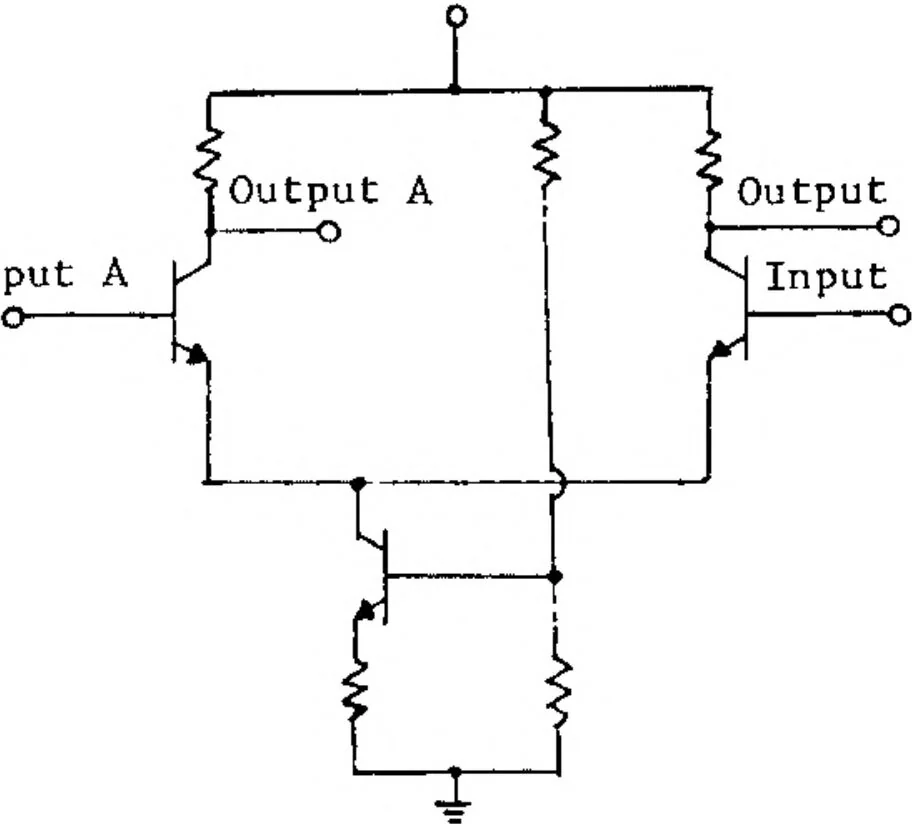

REVIEW OF MICROELECTRONICS 39 meaningful numbers can be given. One example is given in ‘‘Ee-. dundancy Made Possible by Microelectronic Devices,” Chapter 4. The most important reliability problem with microelectronic devices is “foolish” failures. In this category fall those defects in the device… … +v/ Open-loop Voltage Gain (db) 62 Common-mode Rejection (db) 60 Bandwidth (kc) 50 Input Impedance (kO) 12-100 Output Impedance (0) 160 Supply Voltage (v ) 10, 6, -9 (b) Texas Instruments SN522 Operational Amplifier +V Insertion Power Gain at 3 Me (db) 30 Input Resistance (0) 300 Output Resistance…
