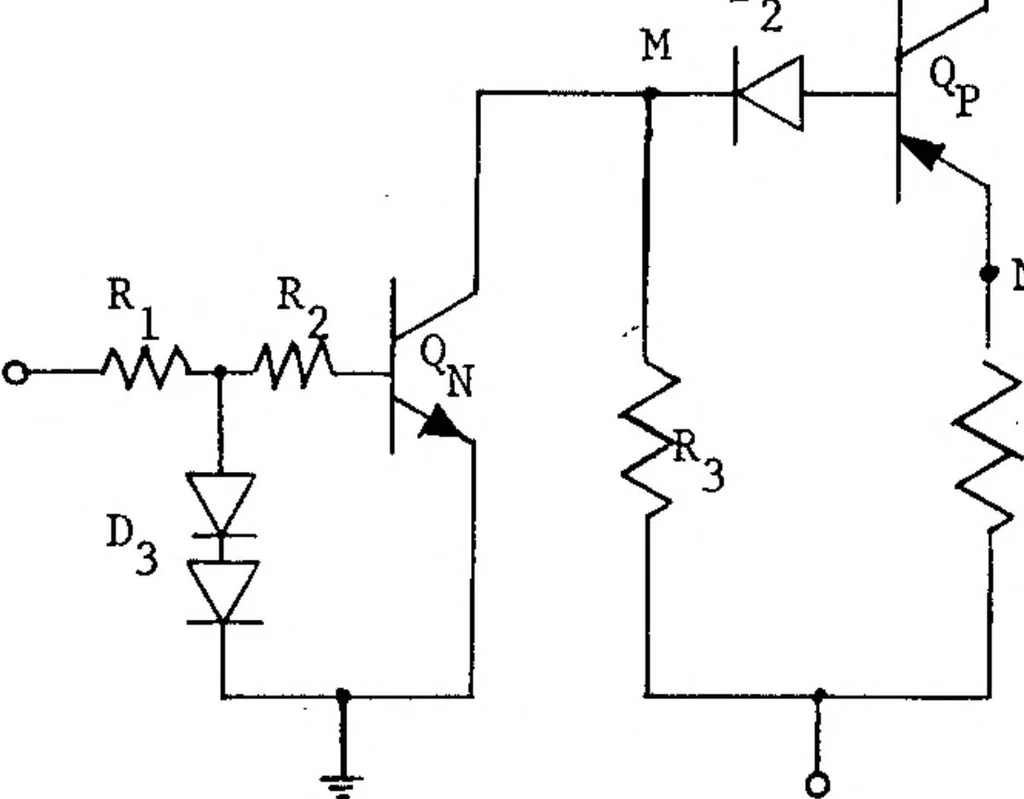

67 DEVICE DESIGN AND DEVELOPMENT … Figtjee 18. — Analog switch circuit. In the absence of a control signal, the collector-emitter circuits of Qn and, consequently, Qp are open circuited. Consequently, the nega¬ tive potential, — F, can reverse bias Di and the base-emitter junction of Qa> Diode Z>i reduces the reverse bias applied to…
