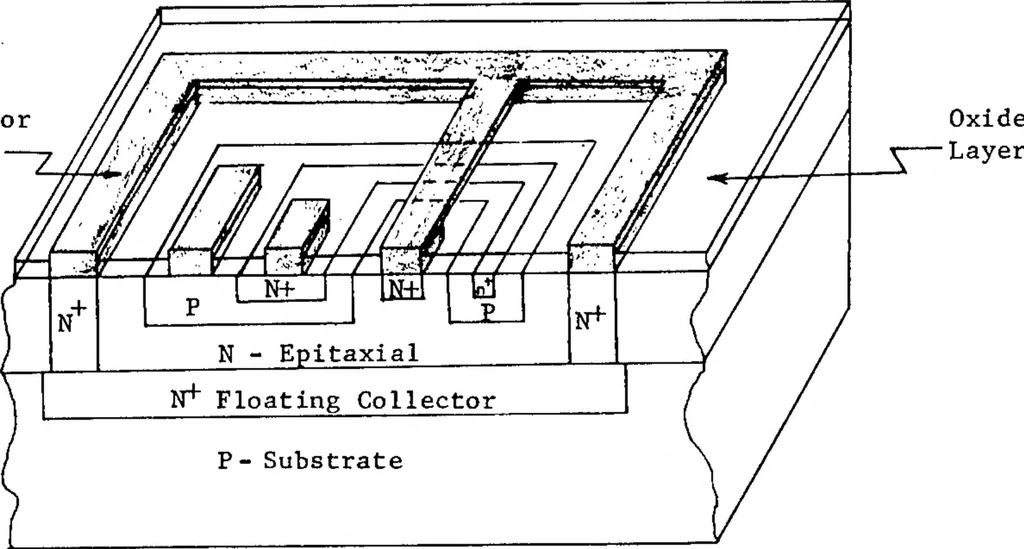

70 MICROELECTRONICS IN SPACE RESEARCH … Figure 20. — Analog switch transistor structure. The novelty of the analog gate is the bidirectional transistor having a foward common-emitter current gain of 50-100 and a reverse com¬ mon-emitter current gain of 15-30, achieving a typical offset voltage of 1 mV. INTEGRATED LOW-LEVEL DC…
