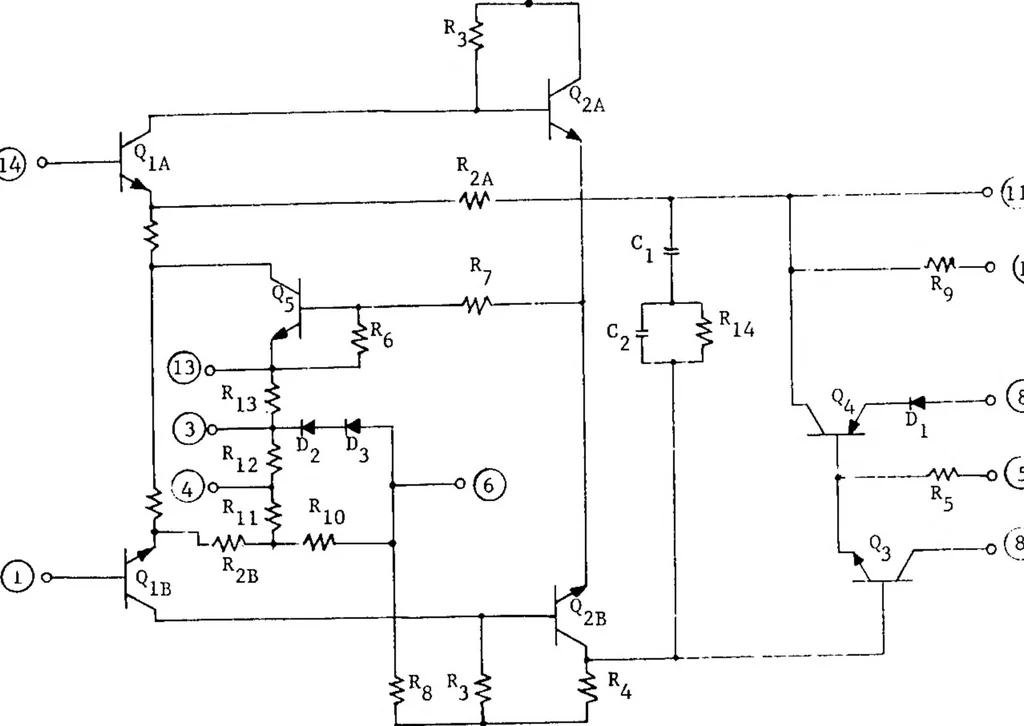

72 MrCEOELECTRONICS IN SPACE RESEARCH @ … 3. No Connection 8. Positive Supply Voltage A. No Connection 13. Negative Supply Voltage 5. Common lA. Input B (Inverting) Figure 21. — DC amplifier circuit. Differential amplifiers, with a basic requirement for matching of transistors and resistors, are nearly ideal for fabrication as a mono¬…
