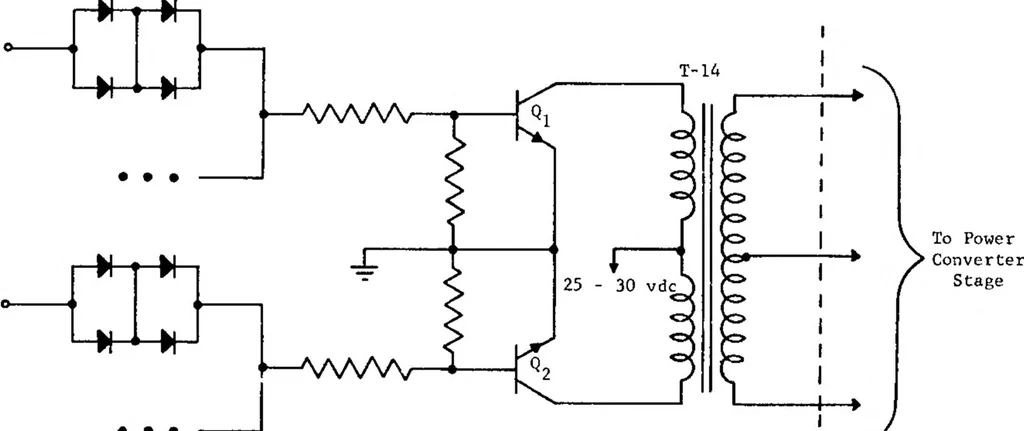

chips included in the same package with the rest of the unit. The dc supply for the power amplifier is 28 volts, and an output of 10 amperes is required for a 1 ampere drive. The drop across the transistor is not to exceed 1 volt. The tum-on time is about 6 microseconds, and the storage plus fall… … Figube 26. — Conventional preamplifier circuit.
