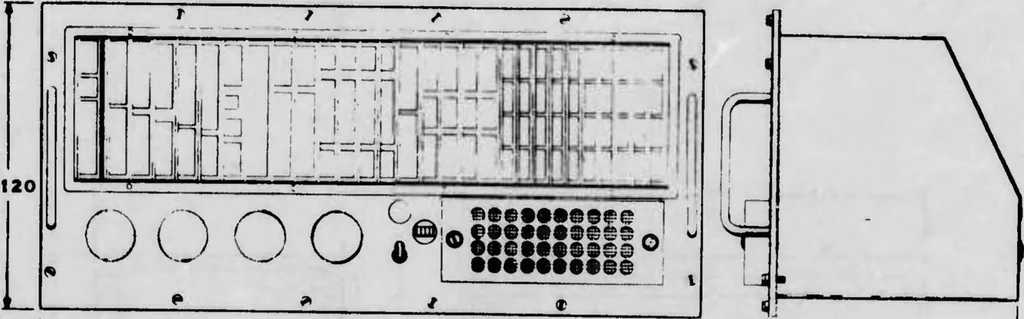

Figure 4. Air Indicator Control Unit Outline Drawing Cooling is accomplished with two 55 CFM fans, working against a pressure differential of .25 inches of water. The inlet to outlet temperature rise is less than 8 C. Cooling air is filtered through a ten (10) Pore-per-inch, flexible polyester foam…
