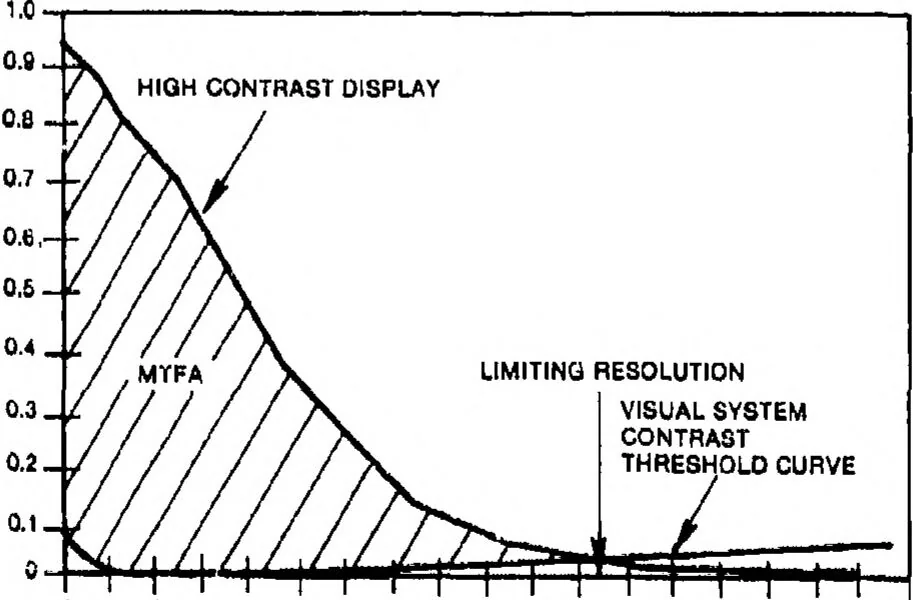

requency (Task and Verona, 1976) . An example of a typical display system MTF is depicted by the upper curve in Figure 12. Note also that the Bpatial frequency may be presented in several types of units. For example, cycles per inch, cycles per millimeter or cycles per display width describe the… … SPATIAL FREQUENCY (CYCLES/DEQREE) Figure 12. Pictorial representation of MTF, MTFA, and limiting resolution. Human visual capability oan be measured with a related technique using sine-wave test patterns. The procedure is to have the observer view a sine-wave test pattern that has a contrast so low…
