Detrick arches showing their adaptability to all types of boilers and stokers, special furnaces and oil stills (1921)

M.H. Detrick Company. · M.H. Detrick Co. · leaf 29

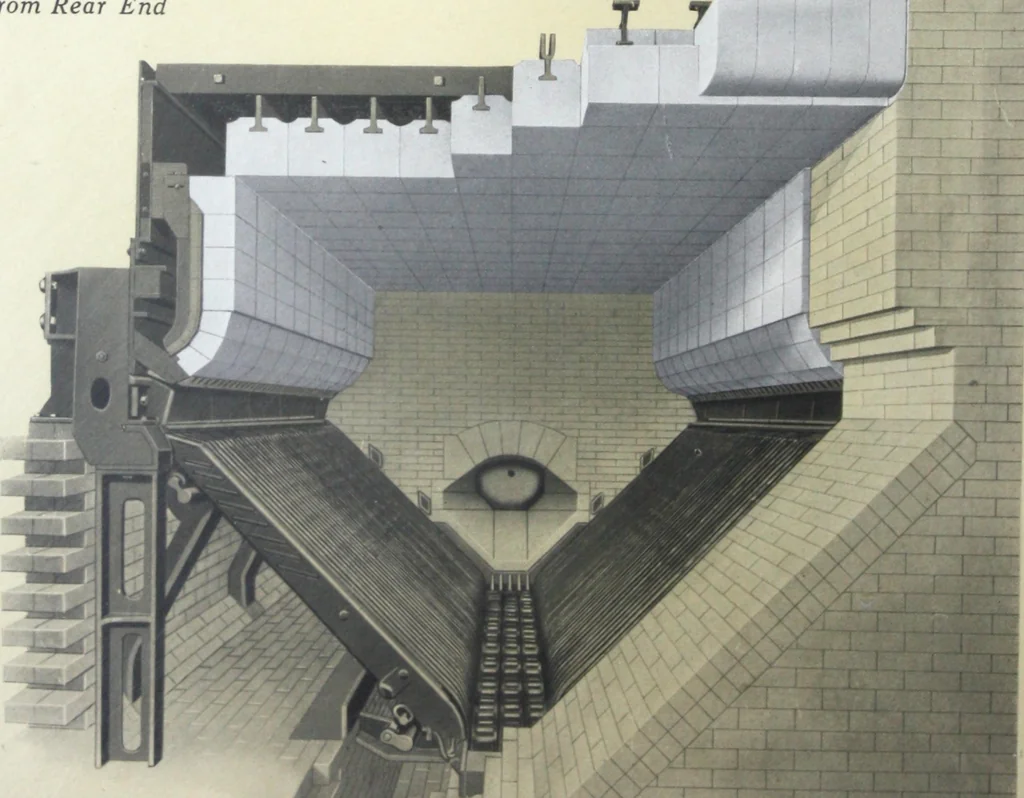

An illustration from Detrick arches showing their adaptability to all types of boilers and stokers, special furnaces and oil stills, 1921, leaf 29 — and are suspendedon T-shaped vertical castings placed lO1^ inches apart. The main arch does not reston the side construction, but is suspended from beams supported on the side plates.A seal is made between the main arch and the side wall. The sides can be repairedwithout removing main arch tile.… … Page Twenty-eight DETRICR 111
