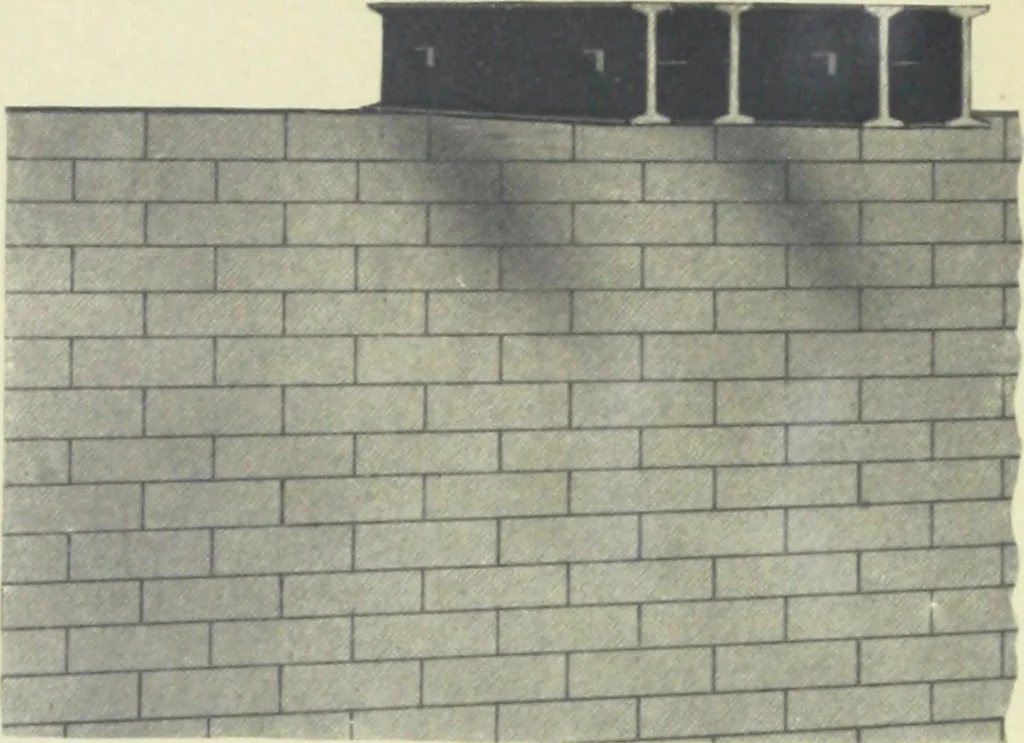

ARCHES lllilillilllliillll Ease of Installation of the Detrick Arch THE illustrations on this and the opposite page picture the details of construc-tion and the ease of installation of the Detrick Arch. The tile numbersreferred to are shown in detail on page nine. … First, the beams are laid on top of theboiler walls. The entire arch is suspend-ed from these beams and it will be notedthat any pressure the weight of the archmight exert must be straight downward.This eliminates any necessity for buck-stays and skew-back irons demandedby the sprung arch.
