Detrick arches showing their adaptability to all types of boilers and stokers, special furnaces and oil stills (1921)
M.H. Detrick Company. · M.H. Detrick Co. · leaf 7

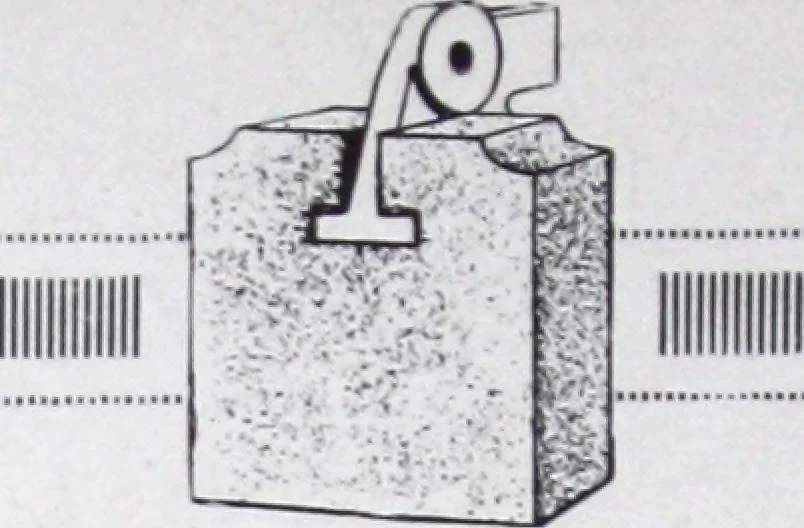

. In fact, furnace design means, primarily, theproper design and setting of the arch. The flat arch can be designed and placed in accordance with requirements ofproper combustion. It can be set at any angle, or a combination of arches can bearranged to meet any furnace conditions. The flat… … ARCHES The Detrick Arch THE Detrick Arch is a flat arch. It consists of center-grooved tile hung fromcast-iron hangers. Each tile hangs like a pendulum. These hangers are sus-pended from structural steel beams, which span the furnace and rest on the side walls. With this construction, the arch-bars…
Building materials · Masonry · Refractory masonry · Flat arch
Internet Archive · Building Technology Heritage Library · Public Domain Mark 1.0. Free to use for anything.
