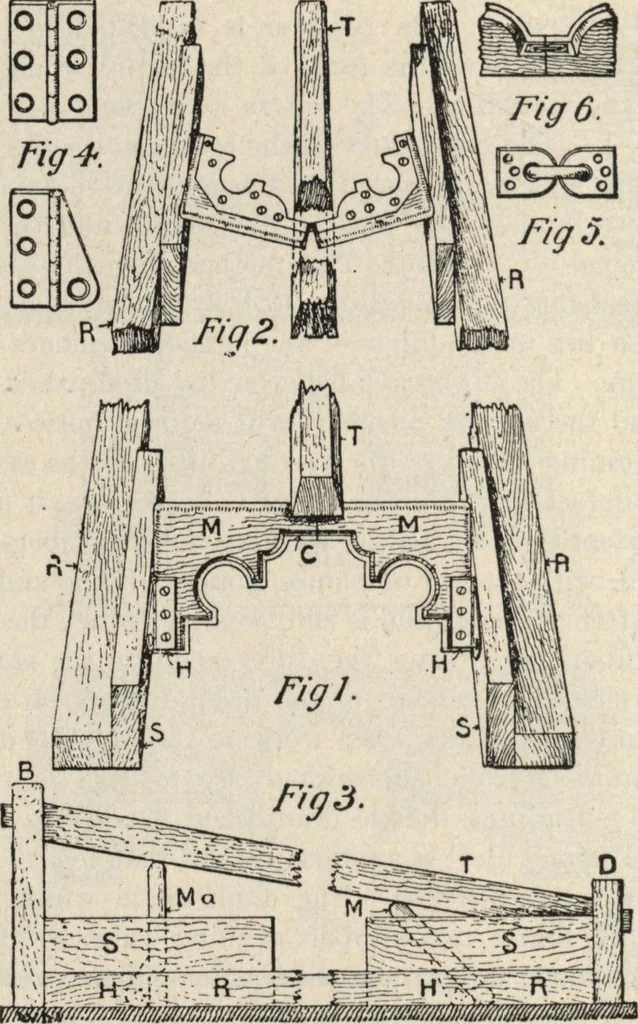

diminish and a triple-hinged mould ais previouslydescribed, and as shown at Figs. 1 and 2 on the an-nexed illustration, No. 18. Fig. 1 shows the runningmould, M, and the slipper rules, R, R, at the full-sizedor springing end of the moulding, and Fig. 2 shows therunning mould and rules at the… … Elevations, Plan, and Sections of-Running Mould and Rules for Diminished. Mouldings—Tof-Kule Method. NO. 18. of one side of the running moulds at the springing anddiminished ends of the moulding, also the running rules. METHODS OF WORK 213 B is the section of the fixing block at the springing endof…
