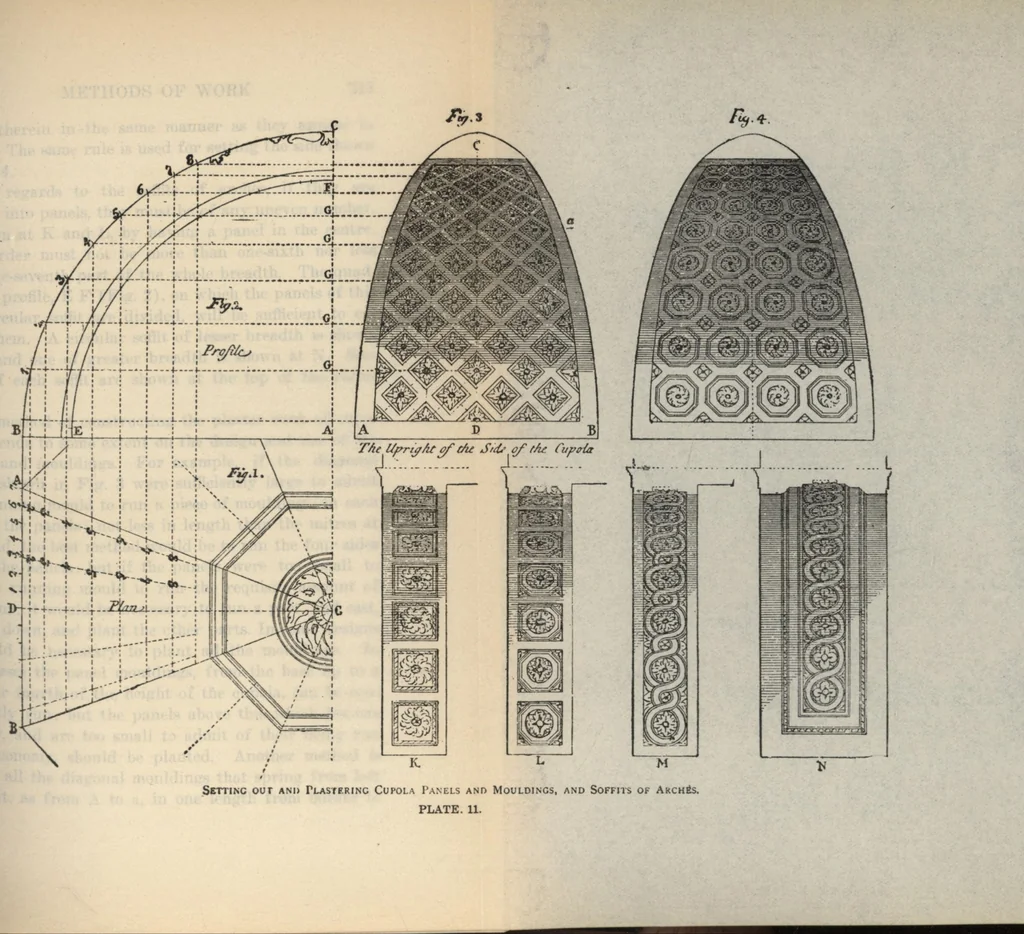

e.First draw the base line (A B) on plan even with thebase line (A B) of the profiler on this erect the perpen-dicular line (D C) for the centre of the side; then draw-all the parallel lines as shown by G G, etc. Take halfthe length of each line, figured in the plan, and mark iton each side of the… … METHODS OF WORK 217 tained therein in the same manner as they appear inFig. 3. The same rule is used for setting the side shownat Fig. 4. With regards to the soffits of arches, if they aredivided into panels, they must be of any uneven number,as shown at K and L, by having a panel in the centre.The…
