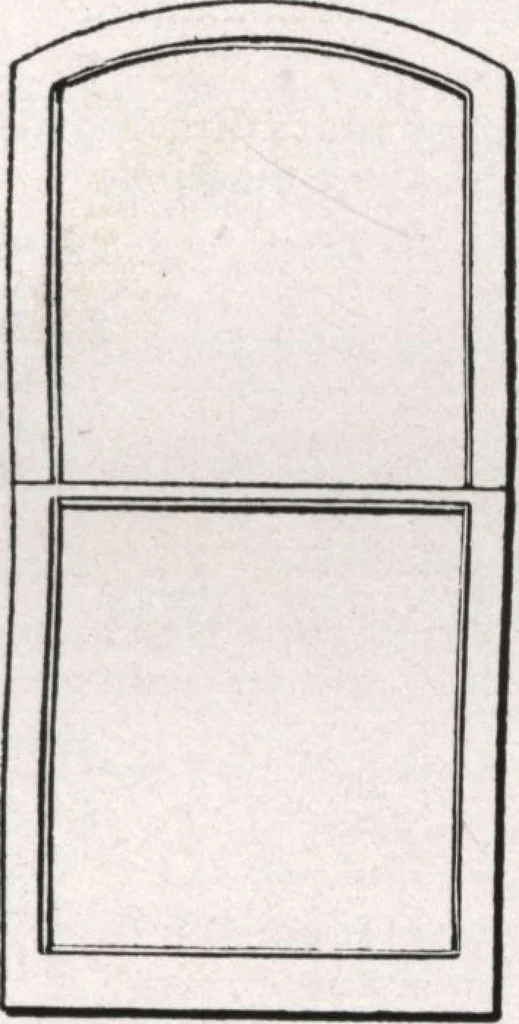

Fig. 2 Circle outside, square inside,Radius, one-half width of sash(less width of one stile). … Fig. 3 Segment inside and outside.Radius, width of sash. Fig. 4 Segment outside, square inside.Radius, width of sash(less width of one stile). For segment, circle or gothic windows always give radius if not as above. If not given it will beunderstood that the regular radius as indicated above will…
