Instructions for installing and operating the Thomson recording watt-meter. (1896)
General Electric Company · General Electric Company, Nela Park Engineering Department, · leaf 16

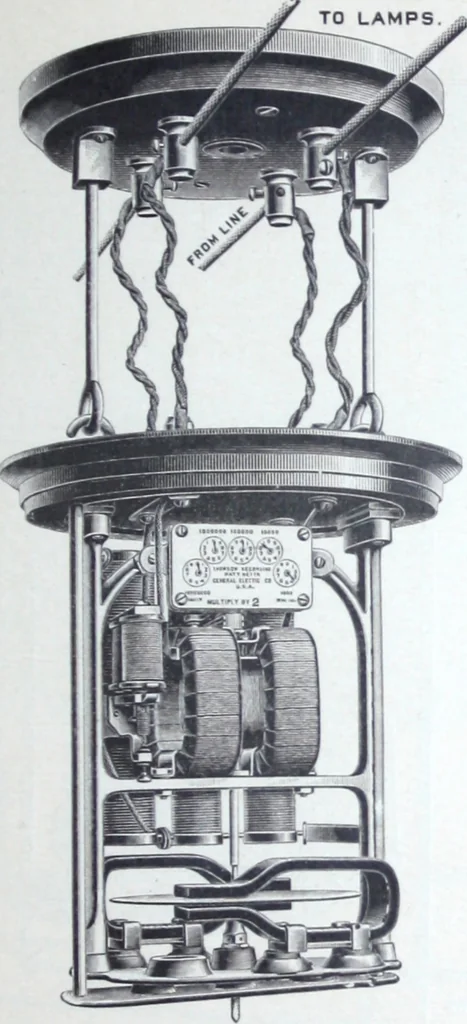

ins, and theterminals .Sto the two small terminals of the meter. The proper direction of rotation is indicated bv an arrow onthe disk of the meter. If the rotation should be in the Cippositedirection, reverse the wires in the inside terminals. The meterwill rotate even when there are no lights… … Figure VI.Arc Circuit Meter. After hanging the meter in position and levelling it by the useof a small spirit level on the base near the magnets, connect thefour terminals of the meter by flexible cables to the correspondingterminals of the hanger board. Connect the two front terminalsof the hanger…
