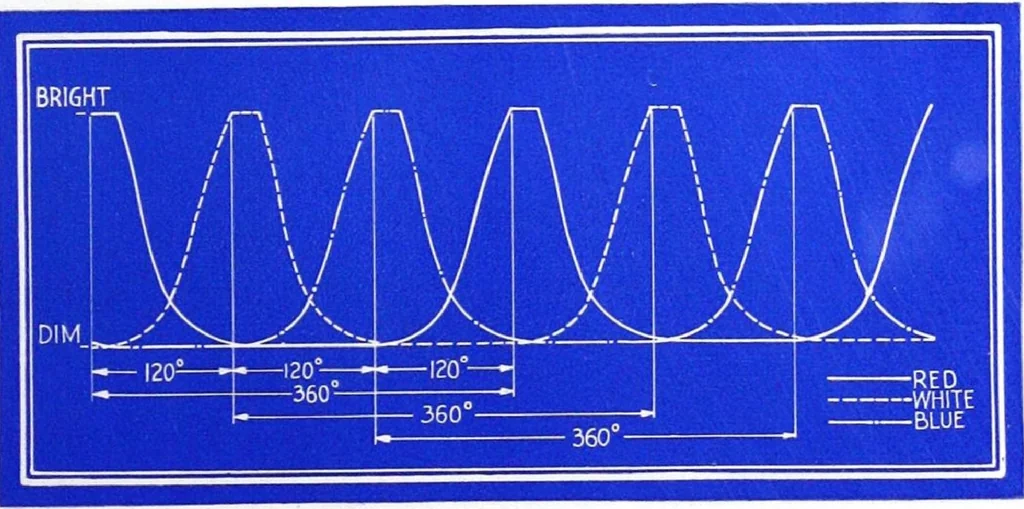

color in motion is the color cycle. This is a curve drawn between illumination and time. Typical color cycles are shown in Figures 1 and 4. The cycle in Figure 1 can be produced with the simplest type of equipment since all mechanical cams can be eliminated by using a special type of dimmer plate.… … FlGURE 1. Color cycle produced by cycle dimmer illustrated in Figure 2. [in .•^; MM
