The Determination of Several Spray Characteristics of a High-Speed Oil Engine Injection System with an Oscilloscope (1928)
NASA Technical Reports Server (NTRS) · leaf 14

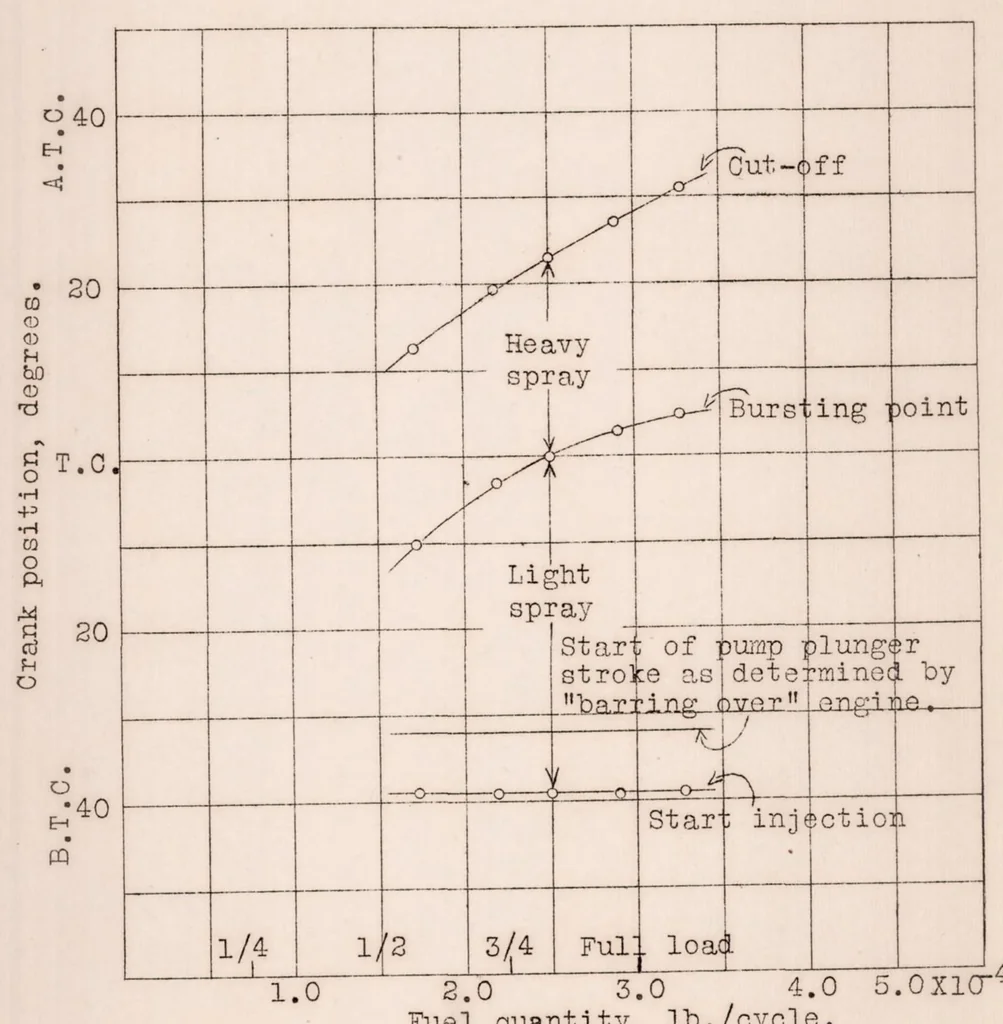

Fig.4 N.A.C.A. Technical Note No.298 … Fuel quantity, lb./cycle. Fig.4 Effect of fuel quantity on injection lag, duration of injection and spray characteristics of an automatic, centrifugal type injection valve. Orifice diameter .025" Valve opening pressure 6000 lb./sq.in. Engine speed, 1600 R.P.M.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
