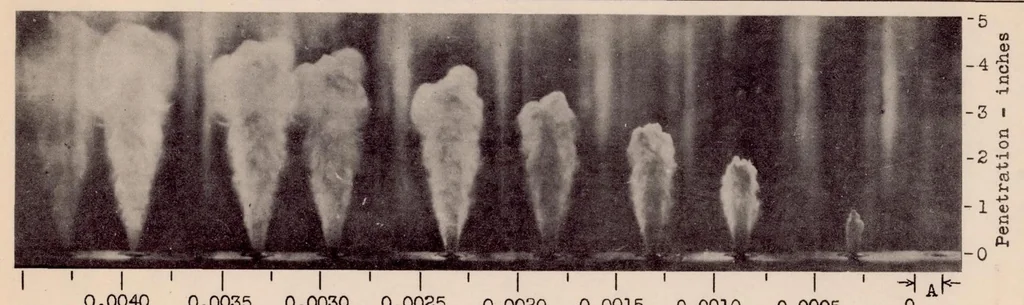

0.0040 0.0035 0.0030 0.0025 0.0020 0.0015 o 0.0010 0.0005 Time - seconds Fuel spray photographs. Injection pressure 8,000 lb./sq.in. Fig.2 A, time interval from first photograph to start of fuel spray. 0.0021 sec, B -0.020 Fig.3 Record -0.015 2 of mo- tion of tim- ing valve -0.010 4J stem. B, time…
