Effect of the Reservoir Volume on the Discharge Pressures in the Injection System of the N.A.C.A. Spray Photography Equipment (1932)
NASA Technical Reports Server (NTRS) · leaf 15

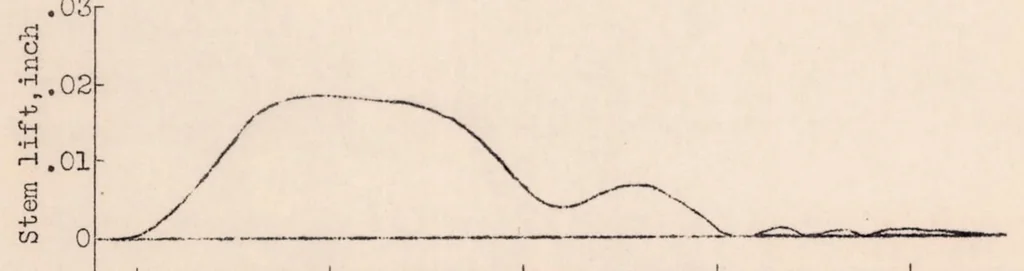

IT.A.C.A. Technical Note lTo.407 §.02r •H 0 .001 •002 .003 Tine,second Reservoir, 94 in., tu"be ,1.1 cu. in. • 03r … J . I I \ L_ 0 .001 .002 .003 .004 Time,second Reservoir,1.6 cu. in. (see ciirve in figure 3) Discharge-orifice diameter, 0.020 in. Injection-tul)e length, 44 in. Injection-valve closing pressure, 2025 ITD./sq. in. Injection pressure, 3500 " " " Initial pressure, 300 " " Fig.4 Effect of shape of…NASA Technical Reports Server (NTRS)
